Kaoto 2.11 release

What’s New?

This release brings significant enhancements to testing capabilities with Citrus framework integration, expanded DataMapper functionality for complex schema handling, and improved runtime management. Powered by Apache Camel 4.20.0, Kaoto continues to make visual integration design more powerful and intuitive.

Citrus Testing Capabilities

Kaoto 2.11 introduces comprehensive Citrus framework integration, bringing automated testing capabilities directly into your visual integration design workflow. Build and manage Citrus tests alongside your Apache Camel routes, ensuring your integrations work correctly through behavior-driven testing.

Why Citrus?

Citrus is an Open Source Java test framework with focus on messaging and enterprise integration scenarios. Citrus has evolved as a perfect match for testing Apache Camel integrations as it provides first class integration with Camel on multiple levels such as Camel JBang support, Camel infra services support, Camel data format and transformation capabilities and much more. In addition to that Citrus also provides multiple test DSLs (Java, YAML) that match the Camel offerings.

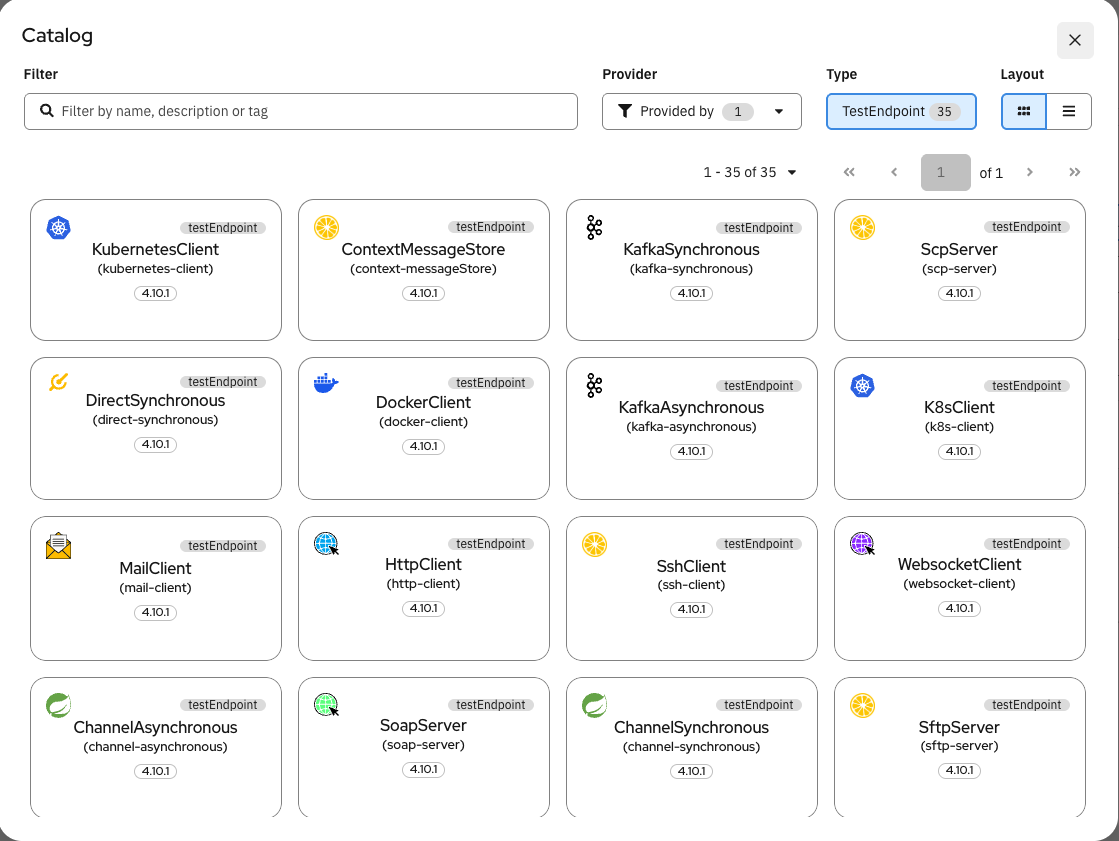

The Kaoto catalog has been enhanced with Citrus-specific components and schemas including test-actions, endpoints, functions, and validation-matcher components, providing a comprehensive testing toolkit directly within the visual editor.

Visual Test Design

• Citrus Test Support - Full integration with the Citrus testing framework, enabling you to create and manage automated tests directly within Kaoto’s visual interface

• Dedicated Test Icons - Visual indicators for Citrus test actions make it easy to identify and distinguish test components from regular integration steps in your flows
• Test Action Library - Access to Citrus test actions (send, receive, echo, sleep, etc.) through Kaoto’s component catalog, allowing you to build test scenarios visually

Test Configuration and Management

• Citrus Endpoint Configuration - Specialized configuration fields for Citrus Endpoints, providing a streamlined interface for defining test endpoints with proper protocols and message formats
• Standard Property Forms - Configure test actions using Kaoto’s familiar property forms, maintaining consistency with how you configure Camel components
• YAML Serialization - Tests are serialized to standard Citrus YAML format, making them portable and compatible with the broader Citrus ecosystem

Integrated Testing Workflow

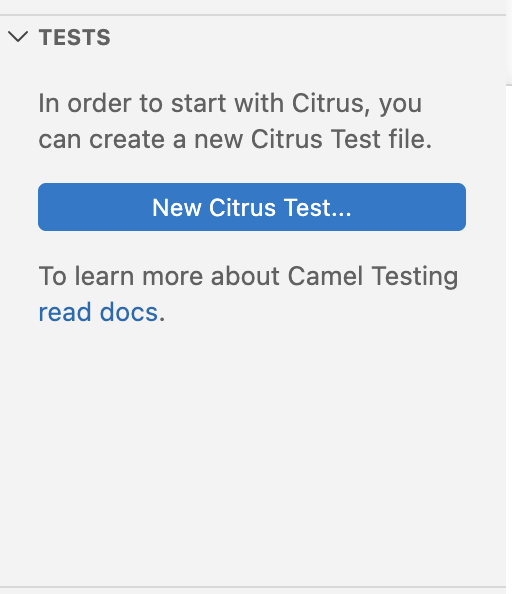

• Side-by-Side Development - Create tests in the same workspace as your integration routes, keeping test scenarios close to the code they validate
• Visual Test Organization - Manage test files through Kaoto’s file explorer, with clear visual distinction between integration routes and test definitions
• Test Execution - Run Citrus tests directly from Kaoto’s interface to validate your integration behavior during development

This feature bridges the gap between integration development and testing, allowing you to validate your Camel routes with behavior-driven testing capabilities while maintaining the visual approach that makes Kaoto powerful.

Catalog and Runtime Management

Enhanced runtime and catalog management capabilities provide better control over your development environment, giving you the flexibility to choose how you execute and test your integrations.

Multiple Execution Options

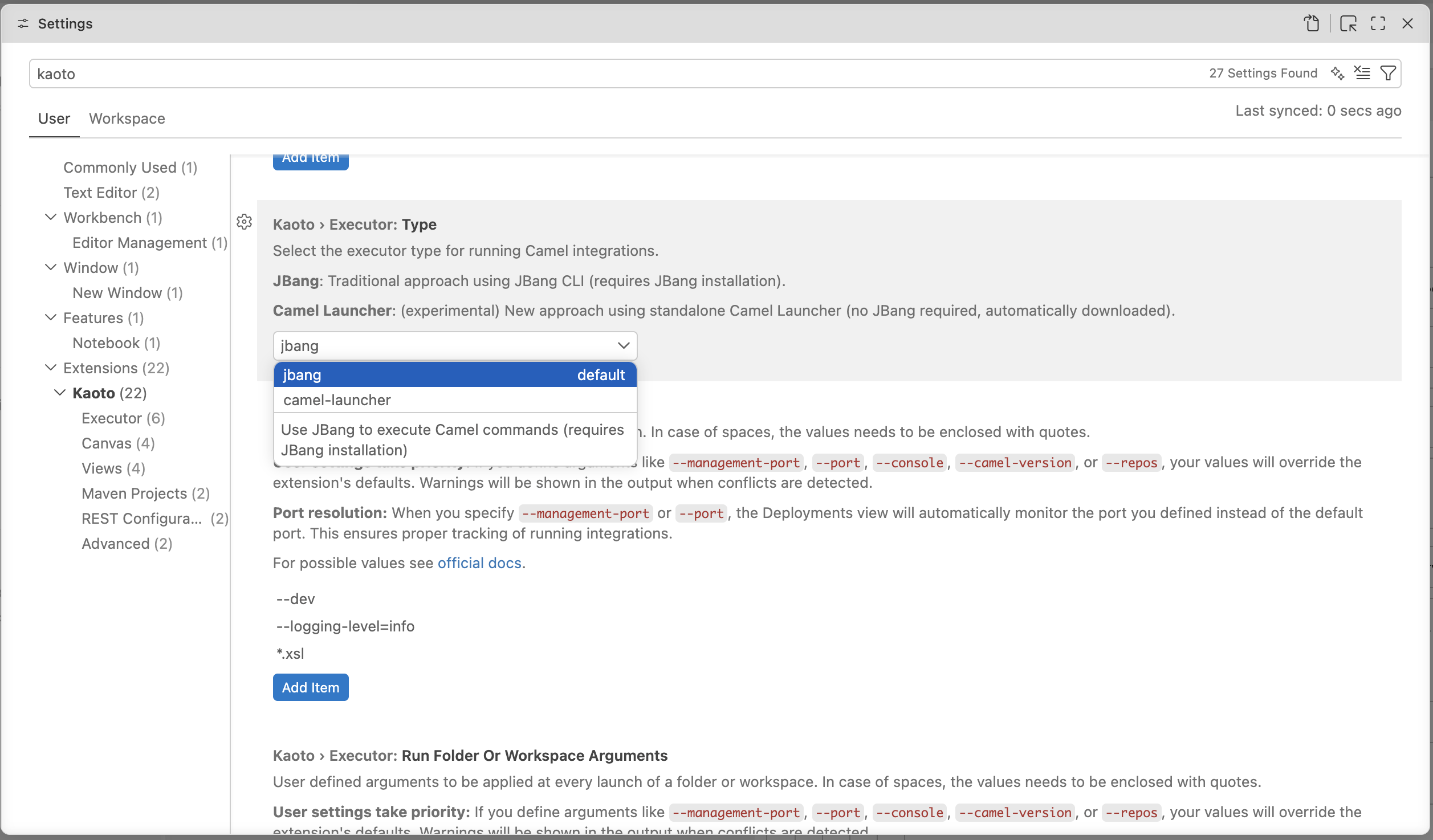

Kaoto 2.11 introduces support for multiple executors, allowing you to choose the best runtime approach for your workflow:

• Camel CLI (Default) - The traditional and stable Camel JBang CLI executor provides reliable integration execution with full Camel JBang feature support. This is the recommended option for most users, offering proven stability and comprehensive Camel runtime capabilities

• Camel Launcher (Experimental) - A new experimental executor that offers an alternative execution approach. This feature is under active development and provides early access to upcoming runtime improvements. Perfect for users who want to explore new capabilities and provide feedback on future execution features

Why Multiple Executors Matter

Different development scenarios benefit from different execution approaches. The Camel CLI excels at production-like testing with full JBang capabilities, while the experimental Camel Launcher explores new execution patterns that may offer performance or feature advantages in the future. Having both options ensures you can choose the right tool for your specific needs while maintaining backward compatibility.

Centralized Configuration

• Settings-Based Catalog Versions - Catalog versions are now read from settings, providing centralized version management across your workspace. This ensures consistency when working with multiple integration files and makes it easier to upgrade or switch between Camel versions

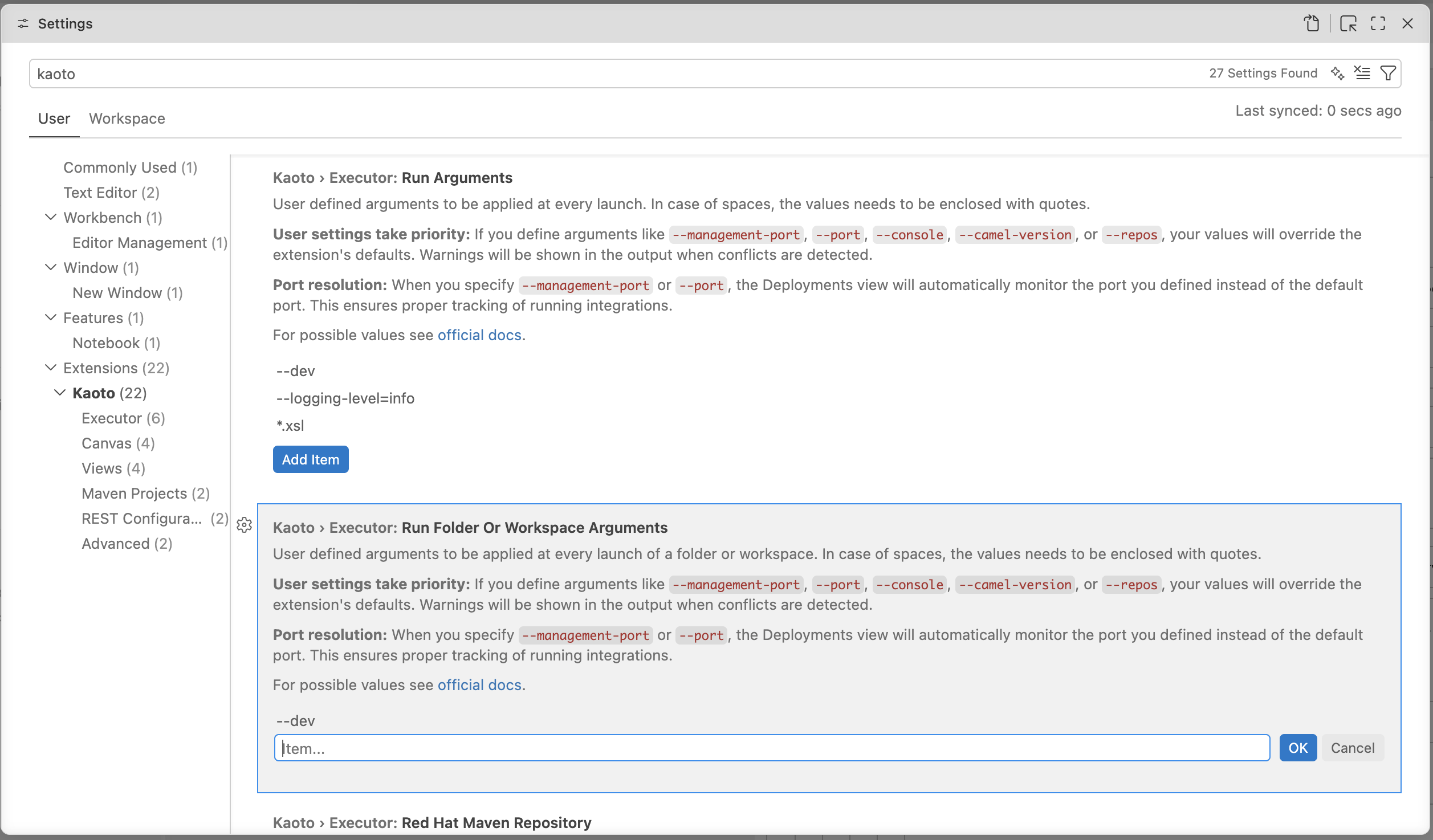

• Custom Run Arguments - Override default run arguments to fine-tune execution behavior. Add custom JVM options, enable specific Camel features, or configure runtime parameters without modifying your integration files

• Camel JBang 4.20.0 - Upgraded default Camel JBang version from 4.18.0 to 4.20.0, bringing the latest Camel features, performance improvements, and bug fixes to your development environment

DataMapper Enhancements

The DataMapper has received substantial improvements for handling complex data transformation scenarios:

Rendering Engine Re-invented

Kaoto DataMapper rendering engine has been re-invented to be enterprise-grade — with virtual scrolling and browser-native rendering, you can flawlessly navigate through large data mappings with complex document schema structures.

Advanced Schema Support

• Field Override - Support for overriding a document field or its type where it’s compatible. Complex XML schema uses Substitution Group to allow element substitution, and xs:extension/xs:restriction to declare hierarchical type definitions. Kaoto DataMapper now offers to leverage this extensibility where the schema definition allows. Right-clicking on the document field offers override options
• Abstract Elements - An abstract element now shows its substitution candidates as children in the document tree, enabling direct mapping from/to the substituted fields. The Field Override modal dialog and context menu make it easy to substitute abstract fields with concrete implementations

• Choice Improvements - Enhanced xs:choice support with dedicated context menu for choosing from choice options. Right-clicking on the document field offers choice options. This works even for nested choices — you can drill down and select the exact branch you need at any level

• Nillable Attributes - Support for xs:element nillable attribute, properly handling nullable fields as declared in the XML schema
• And more to come… We continue working on improving complex document/mapping support. Further improvements to Abstract Elements support are on the way

UI/UX Improvements

• Auto Mapping - Several auto mapping options through Drag and Drop have been added:
  • Source collection field to target collection field: for-each mapping is automatically created
  • Container field to Container field: Automatically creates appropriate mappings, it either uses xsl:copy-of or creates mappings for individual children
• Double-Click Editing - If you’re familiar with XPath, just double-click the target field and write the XPath expression right away
• Delete Key Support - Delete data mapping item by pressing the Delete key for faster workflow

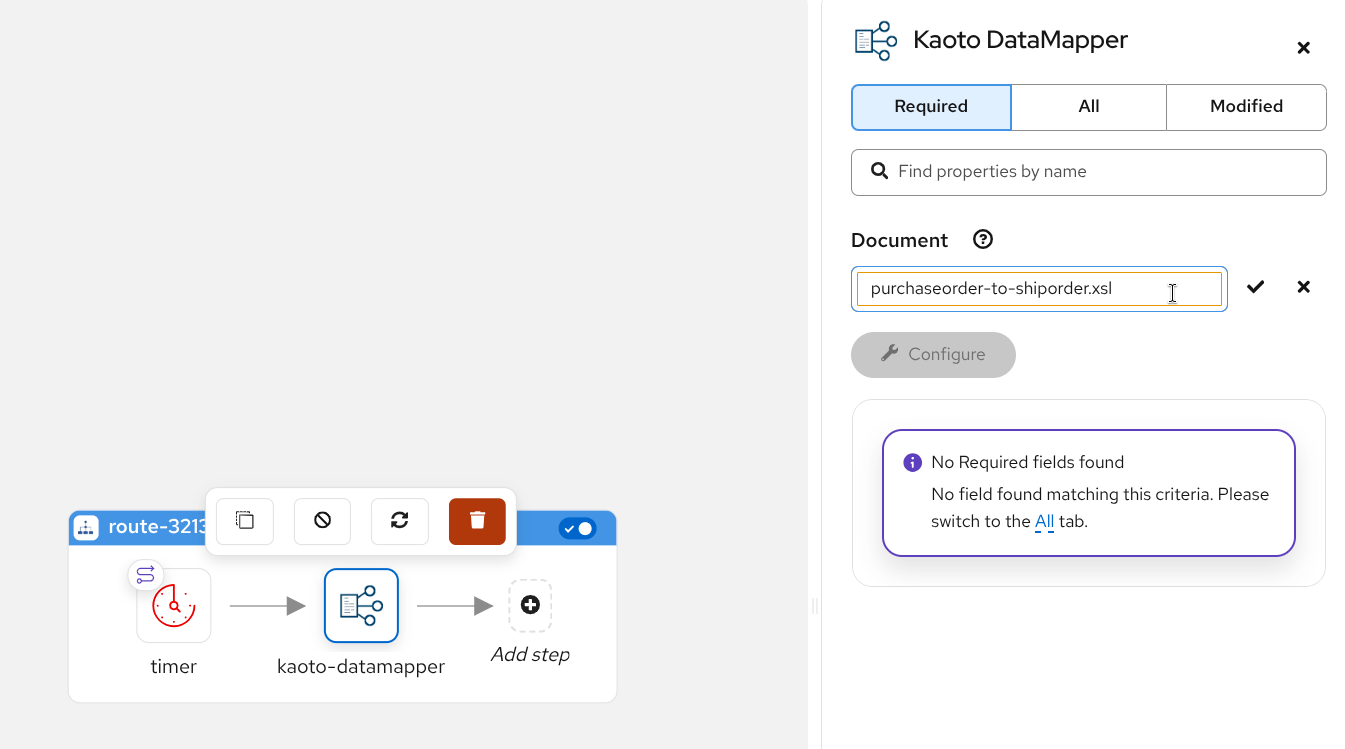

• Allow renaming XSLT file associated with Kaoto DataMapper step

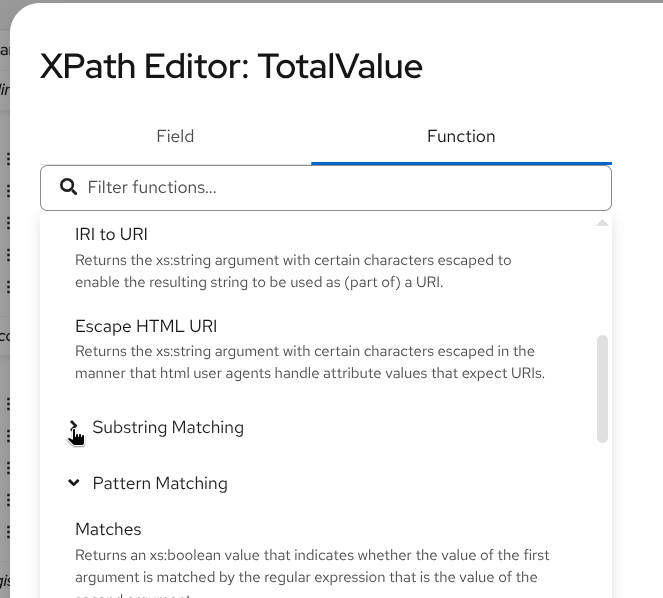

• Allow to collapse the function list in XPath editor

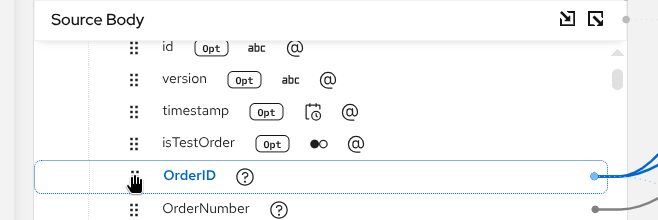

• Highlight the selected field border, not only its title



Other XSLT improvements

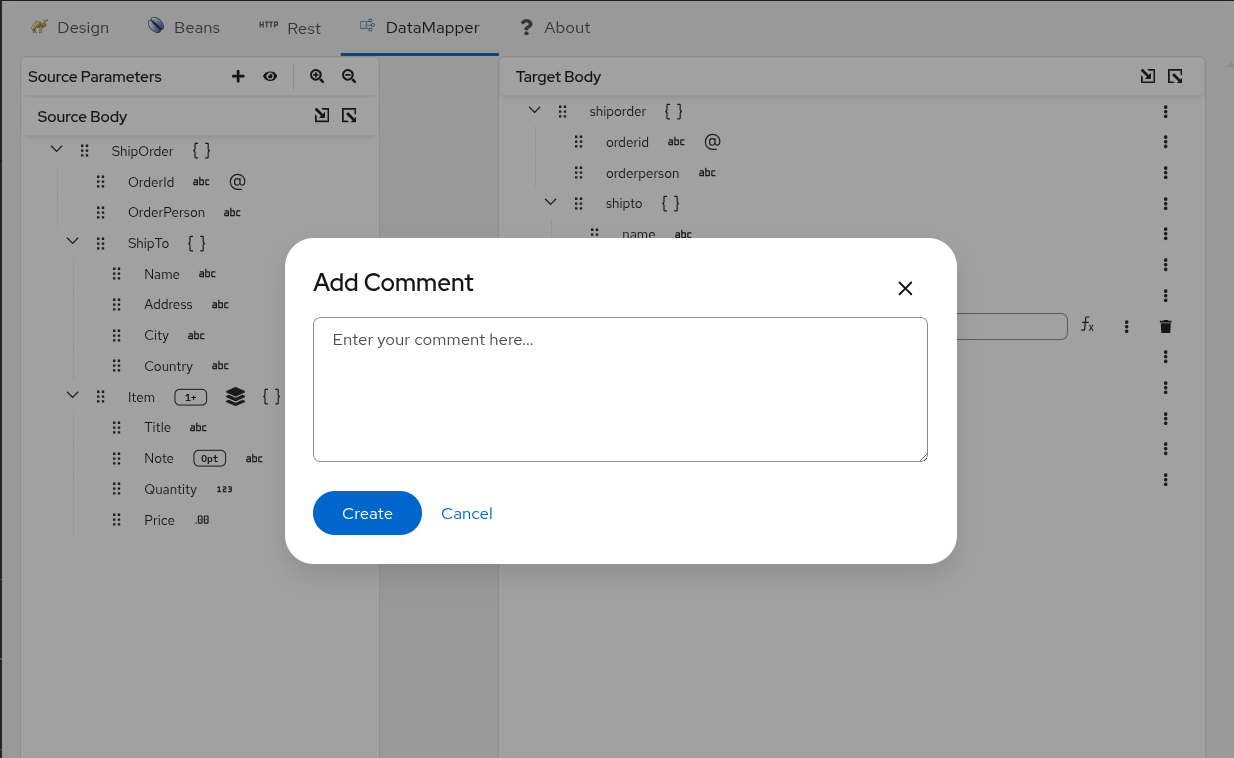

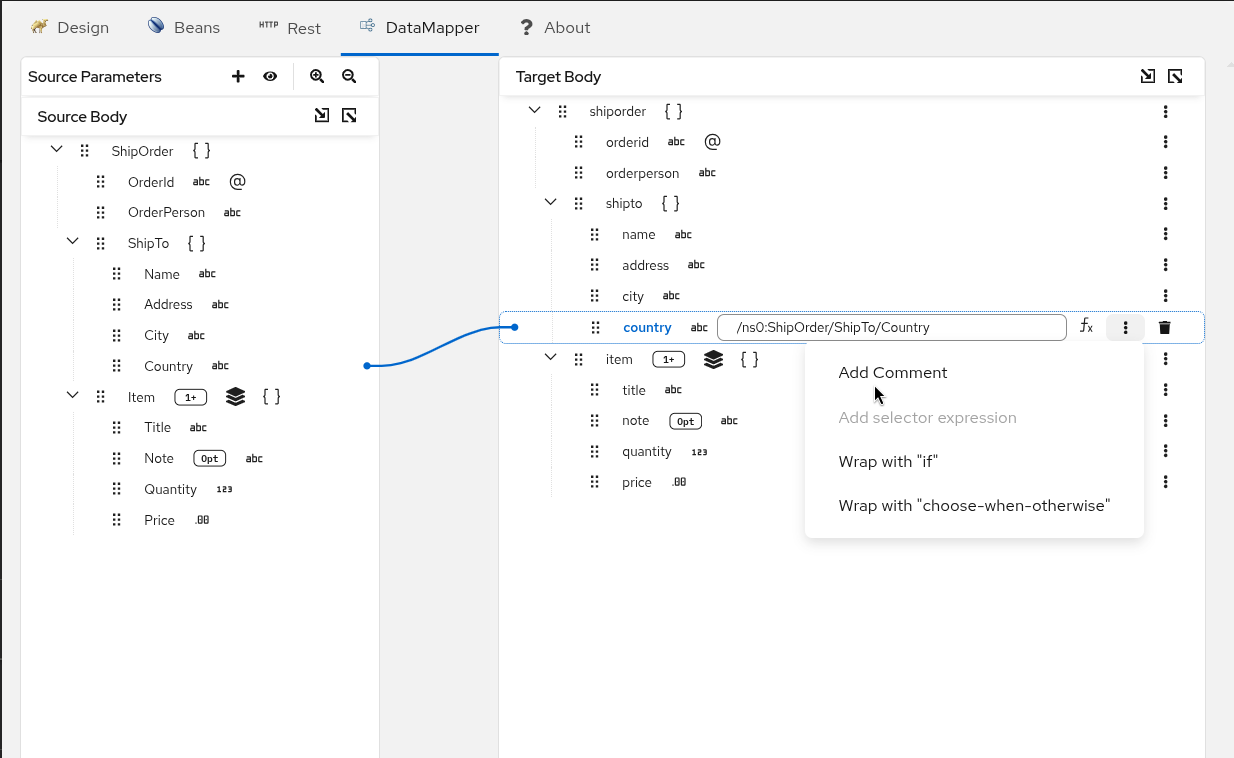

• XSLT Comments - Add documentation comments to your XSLT transformations for better maintainability. Right-click on any mapping element and select “Add Comment” to document the purpose or logic of that transformation. Once a comment is added, a comment icon appears on the mapping element — hover over it to see the comment in a tooltip. This makes it easier for team members to understand complex transformations

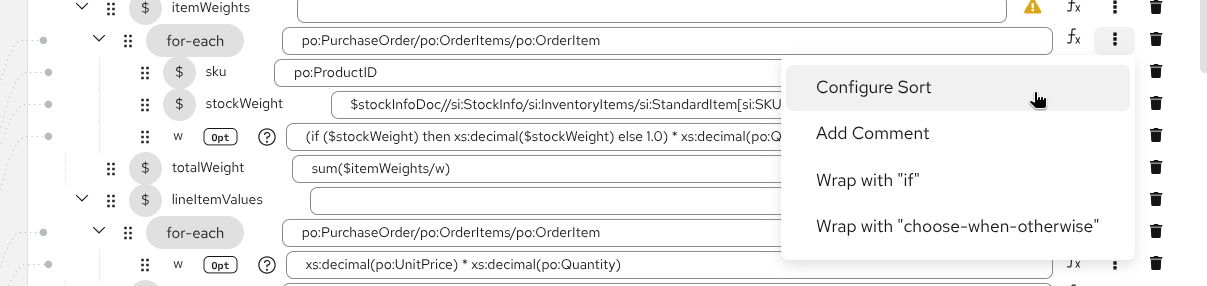

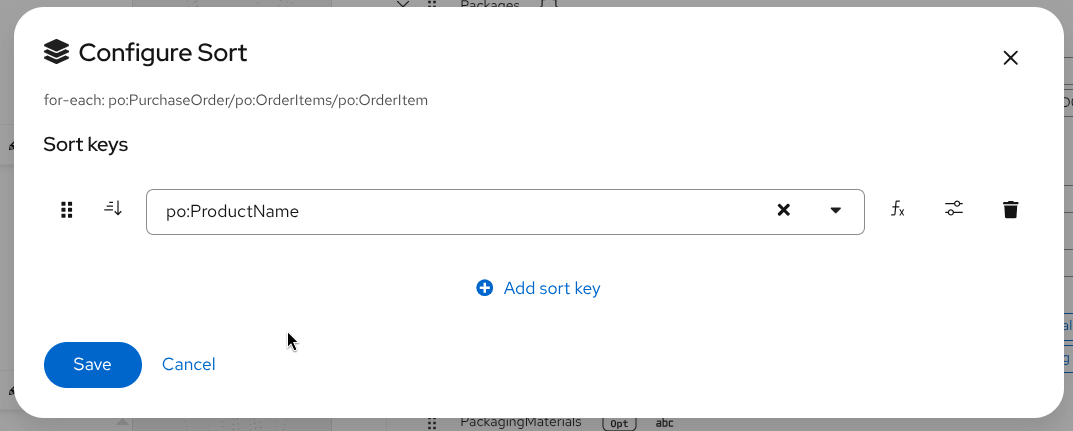

• Configure sort on for-each mapping - Add xsl:sort configuration to the xsl:for-each mapping. Click 3-dots mapping context menu on for-each node and select Configure Sort to open sort configuration modal.

• Added exclude-result-prefixes to generated XSLT to prevent namespace leakage into transformed target XML instance

Canvas and Visual Editor Enhancements

Building integrations is now more intuitive with these canvas improvements:

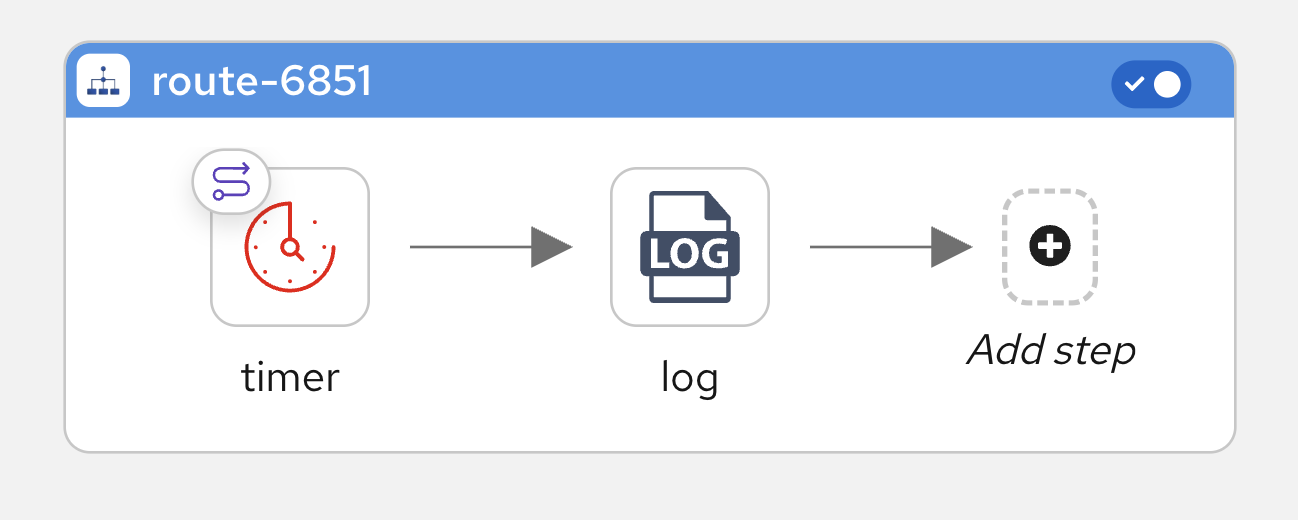

• Route AutoStartup Toggle - Toggle switch in the title bar for controlling route autoStartup property

• Space Bar Navigation - Move the canvas by pressing and holding the Space bar for easier navigation

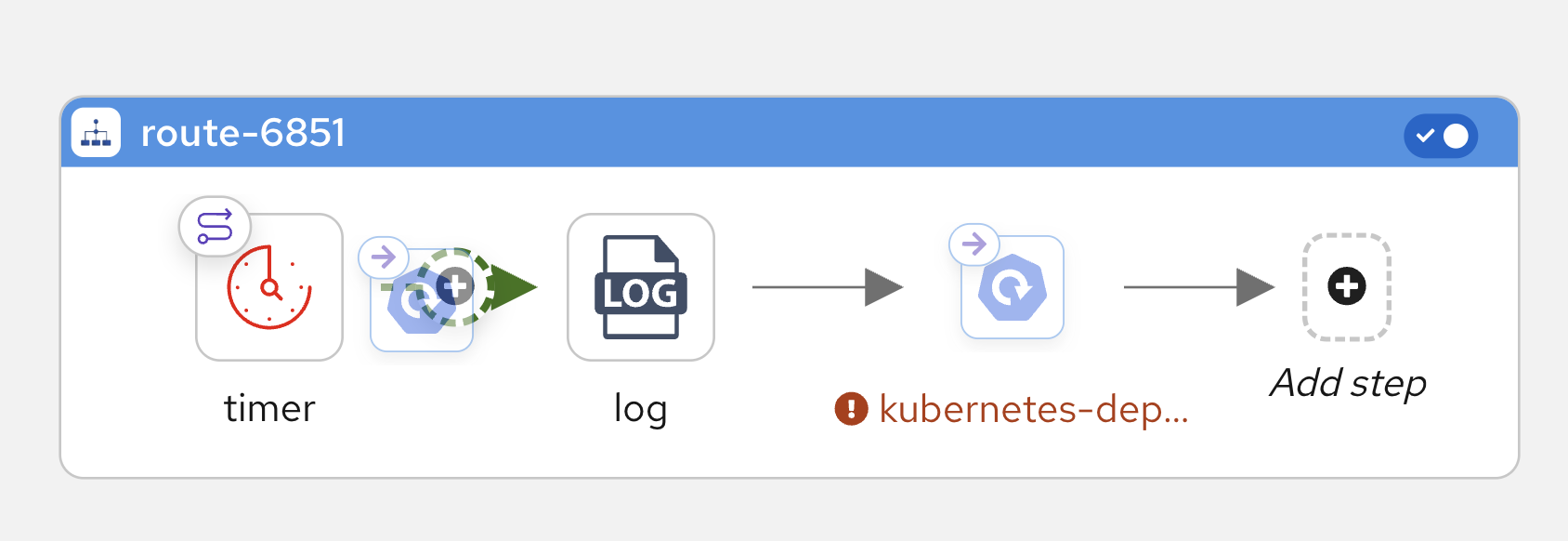

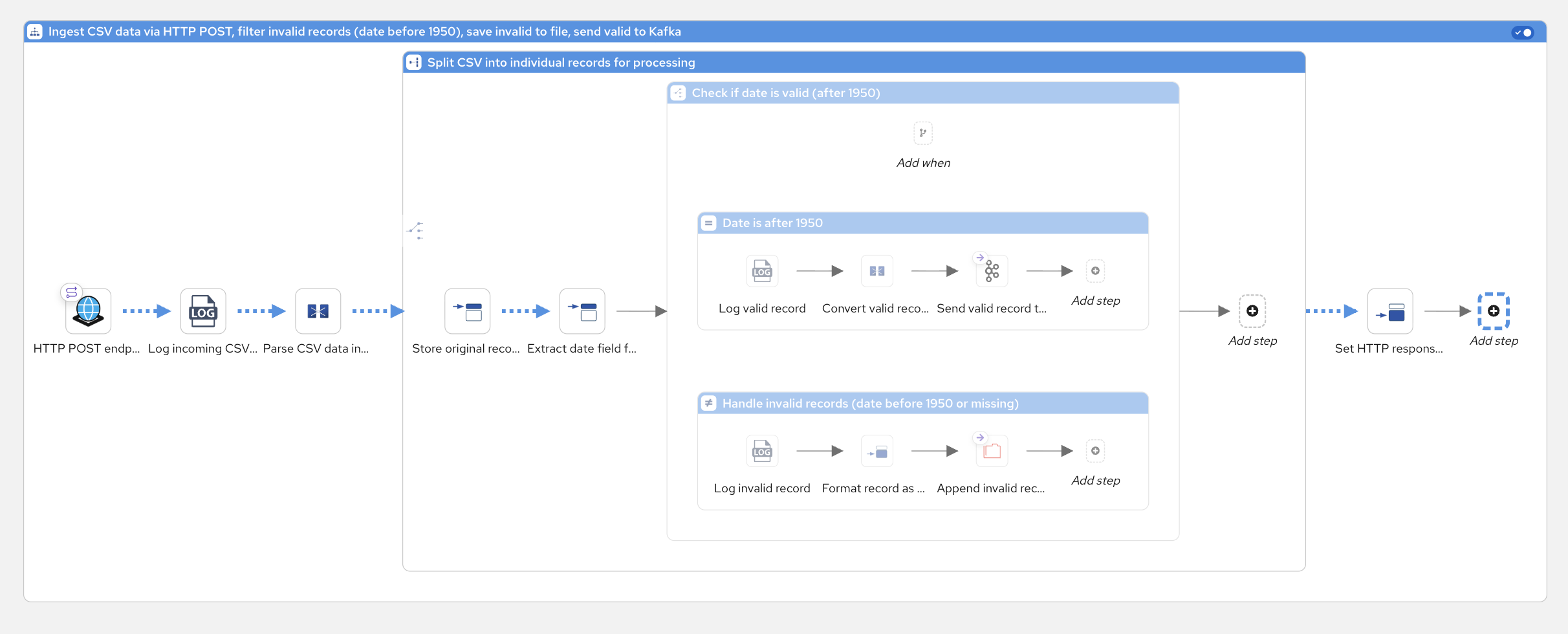

• Container Selection Styles - Visual styles for selected containers in NodeContainer for better feedback

REST DSL and OpenAPI Support

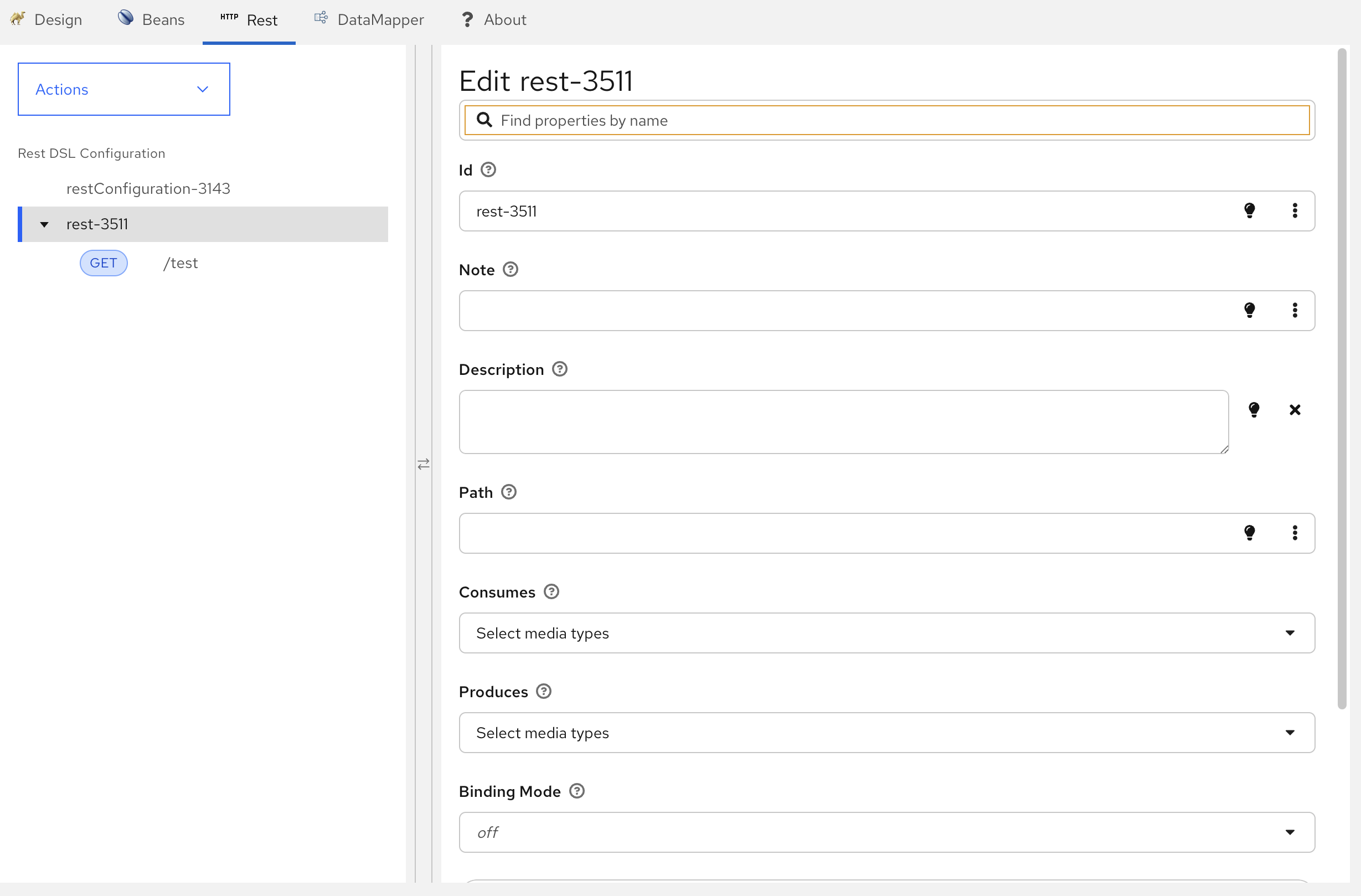

• Property Search Filter - Search functionality in RestDslEditor for quickly finding properties

• Accessible REST Editor - REST DSL editor built with resizable split panels featuring improved accessibility
• Improved OpenAPI Support - Enhanced OpenAPI file handling with automatic detection of *openapi.yml files and flexible API URL imports without file extension restrictions

Forms and Configuration

Configuration forms have been enhanced for better usability:

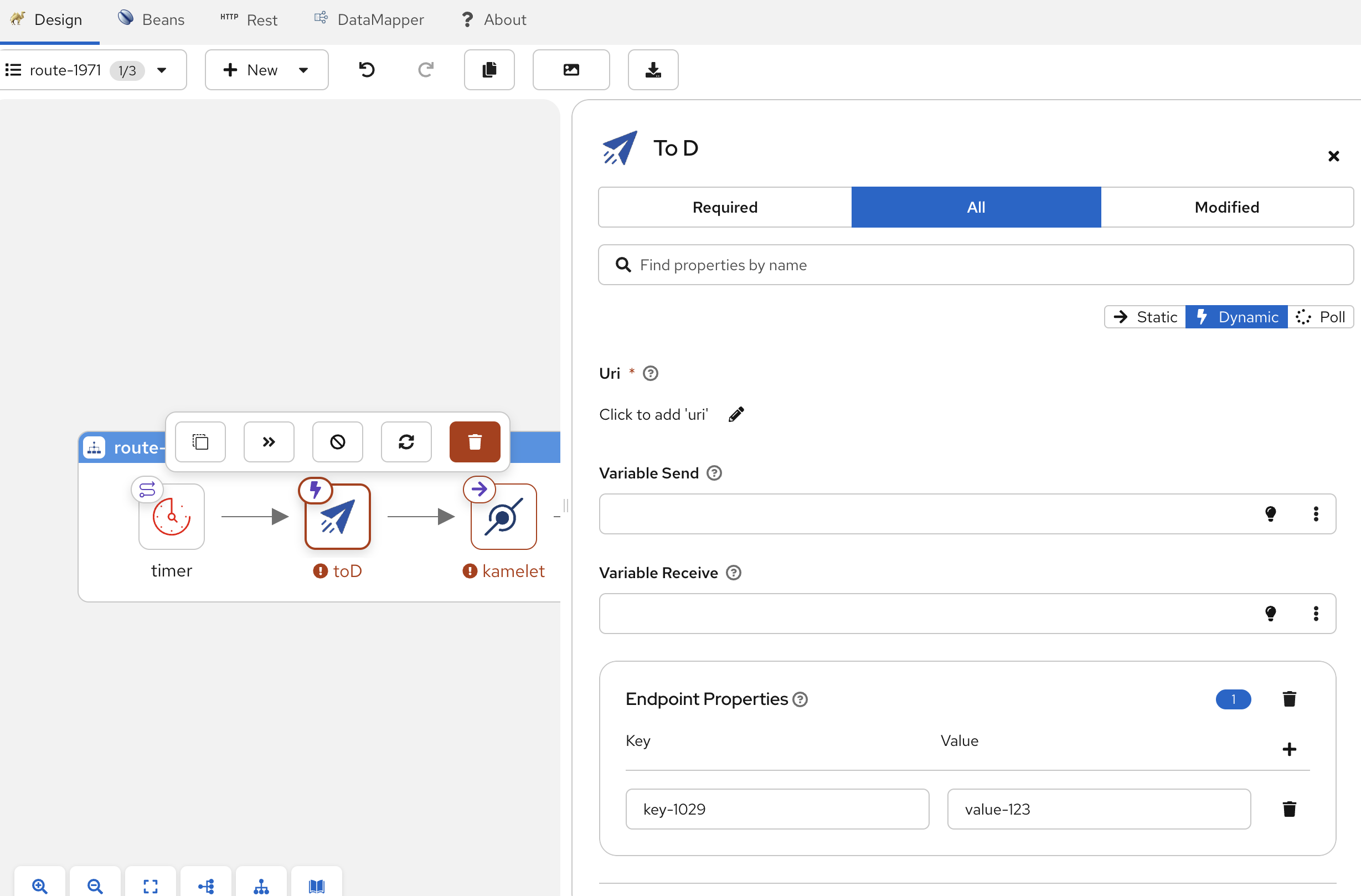

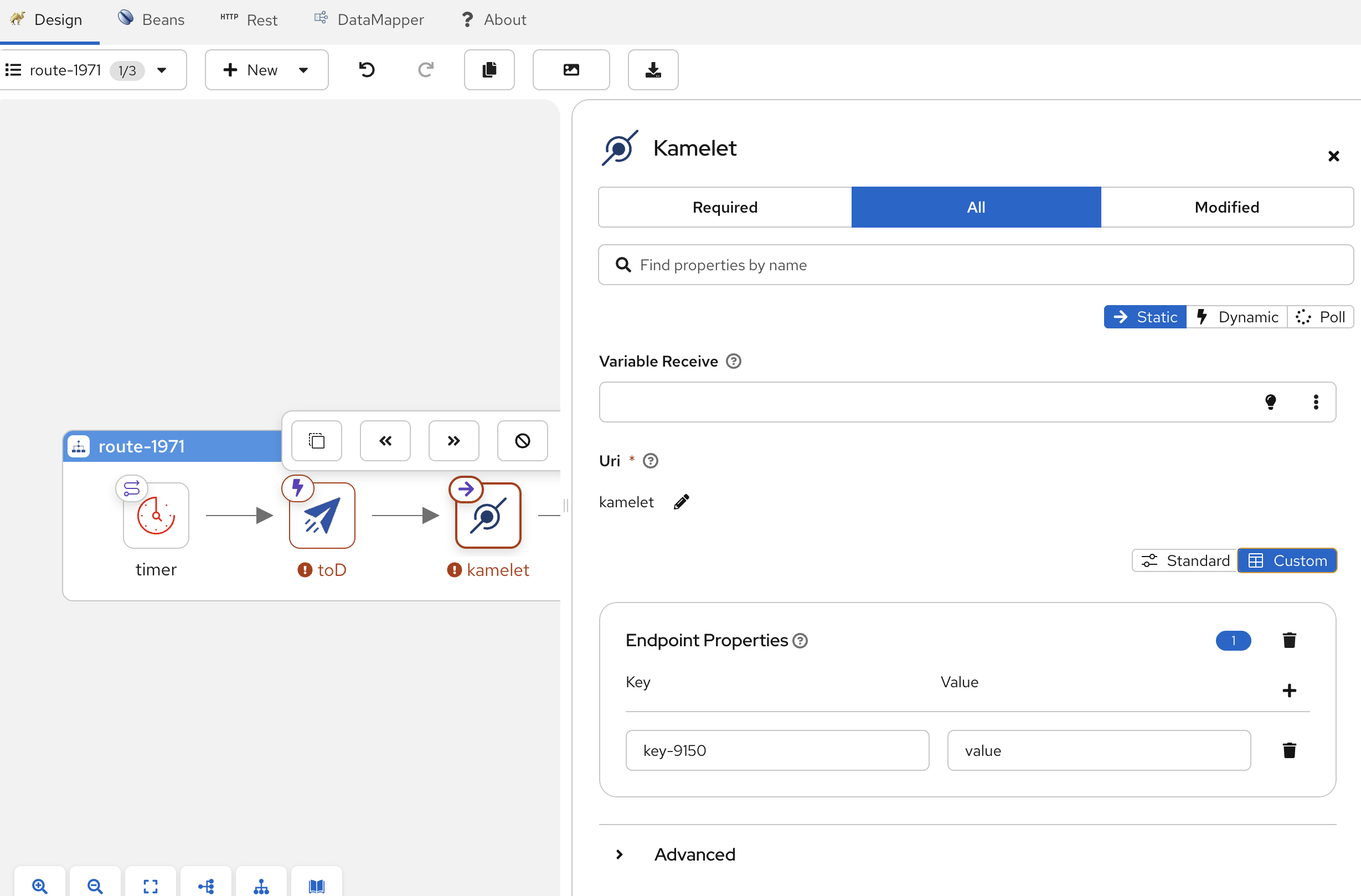

• Custom Properties Configuration - Support for key/value configuration format for endpoint properties in components like To, ToD, and other endpoint-based components, providing a more intuitive way to configure component parameters

Bug Fixes

DataMapper Fixes

Visual and Layout Issues

• Fixed after/before icons dependency on layout
• Resolved parent node collapse when choice node chevron is clicked
• Fixed grabbing icon showing after schema is attached
• Reduced dragged item size to improve usability
• Restored panel headers (Source and Target)
• Fixed tree node indentation for non-expandable children
• Corrected abstract field indentation
• Removed vertical scrollbar in XPath editor when content fits

Mapping and Field Management

• Consolidated mapping action capability checks into actions
• Fixed InstructionItem targeted field item removal
• Corrected primitive document content and document root rendering
• Synchronized mapping lines on window resize when editor changes size
• Avoided state update in useDataMapperDeleteHotKey hook
• Fixed mapping refresh timing
• Skipped rendering nested choice node if both are selected
• Synchronized param lines on add with no attached schema in SourcePanel
• Show delete button for target node added by “Add Mapping”
• Show inner choice members in nested choice context menu

Schema and Substitution

• Implemented substitution field logic (S.1, S.2, S.3)
• Restricted dragged container to be dropped into compatible sub-containers
• Use solid line for primitive params without schema
• Sort substitution group members deterministically

UI and Interaction

• Changed the pencil icon for launching XPath Editor
• Fixed export mapping dropdown item close on modal open

Canvas and Visualization Fixes

• Fixed route alignment when created from an empty canvas
• Restricted container drag area to header only

OpenAPI and File Handling

• Fixed JSON OpenAPI files detection and file validation

UI and Responsiveness

• Fixed responsiveness navigation

Catalog Version

Kaoto 2.11 includes support for:

• Camel Main - 4.20.0, 4.18.2, 4.14.5, 4.10.7
• Camel extensions for Quarkus - 3.35.0, 3.33.1, 3.27.4, 3.20.4
• Camel Spring Boot - 4.20.0, 4.18.2, 4.14.7, 4.10.9
• Citrus - 4.10.0, 4.10.1
