Beans

Overview

Beans allow you to define custom Java object instances that can be referenced and reused across your Apache Camel routes — such as a database connection pool, a custom processor, or a third-party client. If you completed the Quickstart, you can extend that integration by adding beans to it.

A bean has a name (its identifier within the integration), a type (the fully qualified Java class name), and optional configuration such as properties, constructor arguments, or a factory method. Once defined, a bean can be referenced from any step in your routes.

Benefits

Using beans in your Camel integrations provides several key advantages:

• Reusability — Define once, reference multiple times across different routes without duplicating configuration
• Centralized configuration — Manage connection details, credentials, and settings in one place for easier maintenance
• Type safety — Leverage Java’s type system with fully qualified class names for compile-time validation
• Separation of concerns — Keep infrastructure configuration separate from business logic in your routes
• Testability — Mock or replace beans easily during testing without modifying route definitions
• Performance — Share expensive resources like connection pools across multiple routes efficiently

Common use cases

• Data sources — database connection pools (e.g., PGSimpleDataSource, HikariDataSource)
• HTTP clients — pre-configured REST or HTTP clients with base URLs and authentication
• Custom processors — Java classes implementing Camel’s Processor interface for custom logic
• Caches — in-memory or distributed cache instances (e.g., Caffeine, Redis)
• Serializers / Marshallers — Jackson ObjectMapper or JAXB context beans
• Business logic beans — Custom Java classes containing business logic invoked via the Bean component or Bean EIP

Bean Component and Bean EIP

Beans can also execute custom business logic in your routes:

• Bean EIP — The standard way to invoke bean methods as processing steps within a route. Use this for most scenarios where you need to execute business logic mid-route.
• Bean Component — Invokes beans using URI syntax (uri: bean:beanName?method=methodName). Use this when you need to dynamically construct the URI from runtime values such as headers or variables.

Both allow you to define business logic in Java classes and reference them as beans, keeping routes clean and logic reusable.

Kaoto offers two approaches for working with beans, covered in the scenarios below.

db.password=your_actual_password

Scenario 1: Define a bean first, then reference it in a route step

This scenario demonstrates creating a PostgreSQL datasource bean for a book database, connecting it to a route, and running the complete integration.

Prerequisites

Before starting, ensure you have:

• PostgreSQL installed and running locally
• A database named bookstore created
• Database credentials ready

Create the database and table:

CREATE DATABASE bookstore;

\c bookstore

CREATE TABLE books (
    id SERIAL PRIMARY KEY,
    title VARCHAR(255) NOT NULL,
    author VARCHAR(255) NOT NULL,
    isbn VARCHAR(13),
    published_year INTEGER,
    created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

Step 1 — Create the bean in the Beans Editor

1. Open a Camel integration file in Kaoto (or create a new one named book-database.camel.yaml)

2. Click the Beans tab at the top of the Kaoto editor to open the Beans Editor

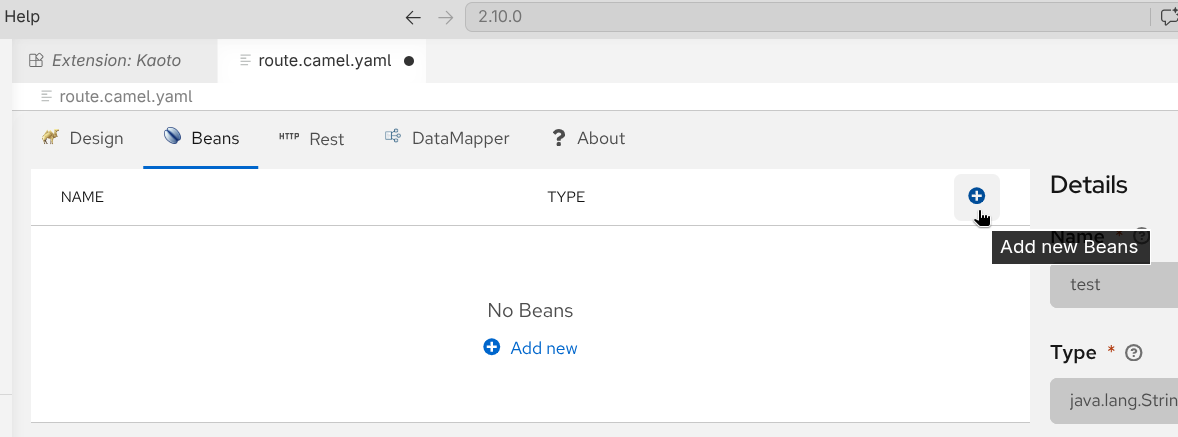

3. Click Add new Beans at the top of the bean list

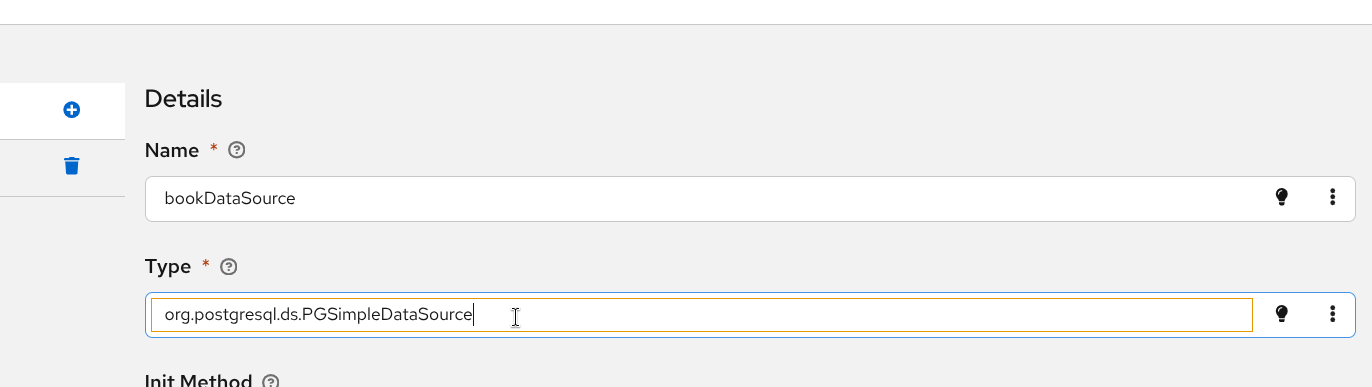

4. In the Details form at the right, fill bean name and Java type:

   • name → bookDataSource
   • type → org.postgresql.ds.PGSimpleDataSource

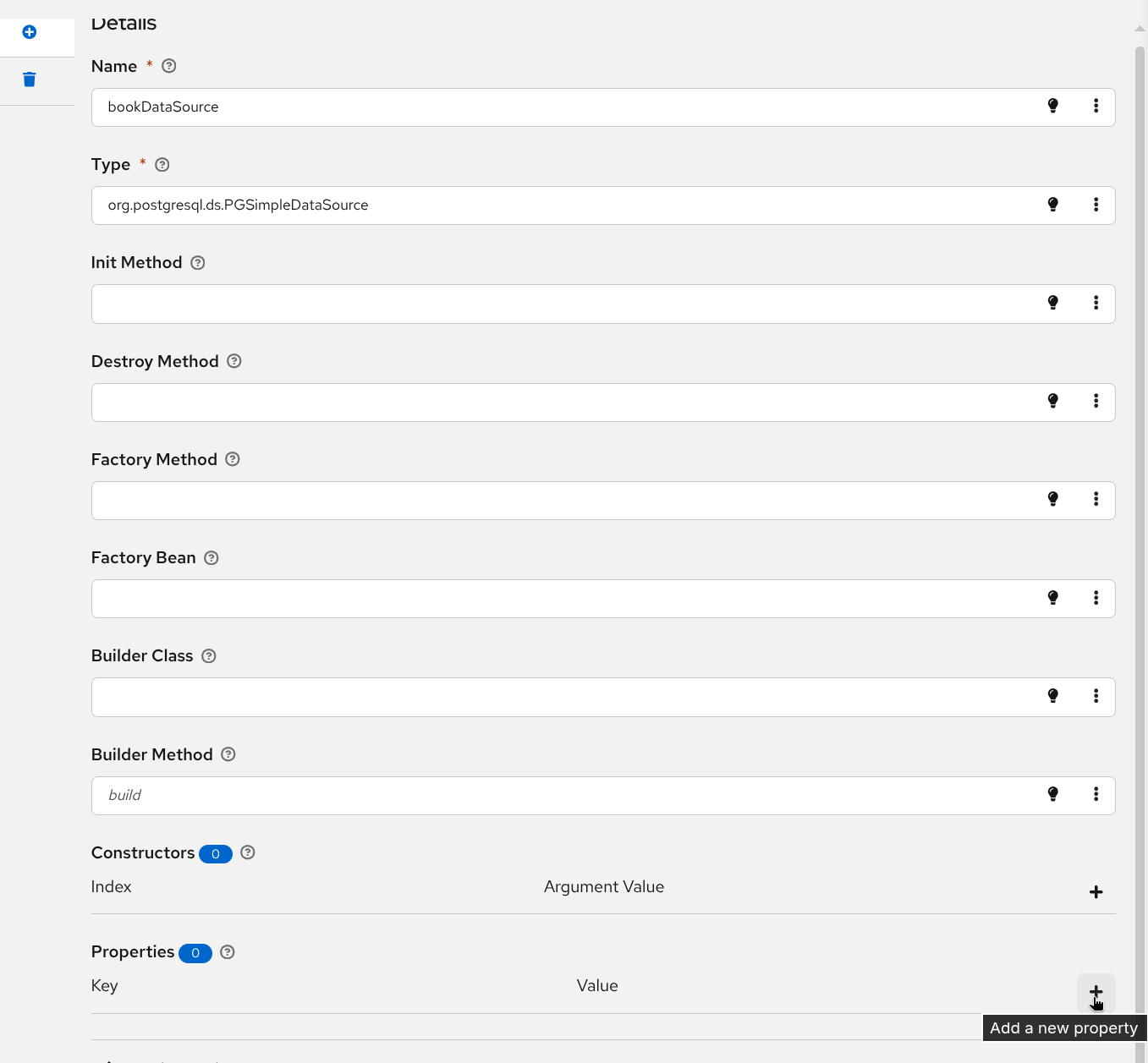

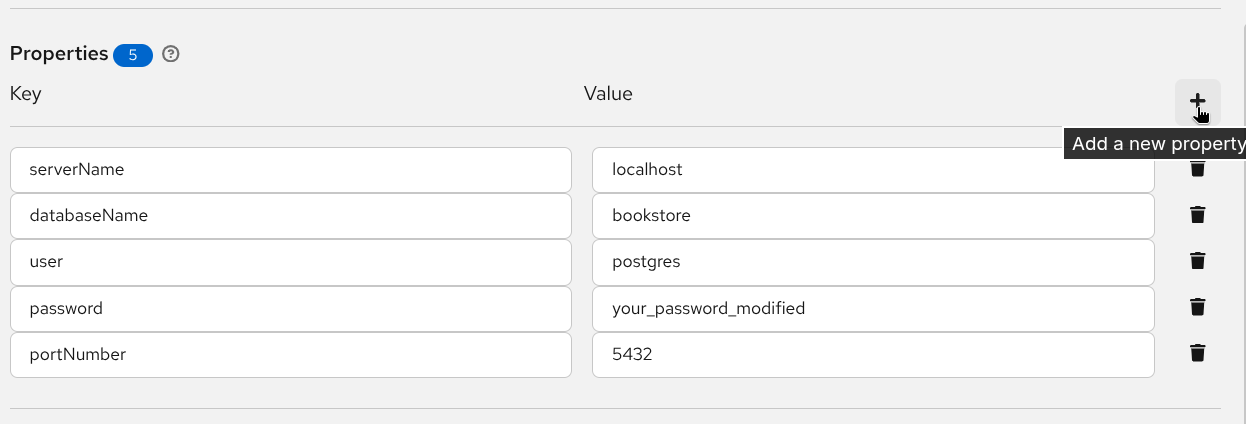

5. Lower in the Details form, add the connection details under properties. Click Add a new property button:

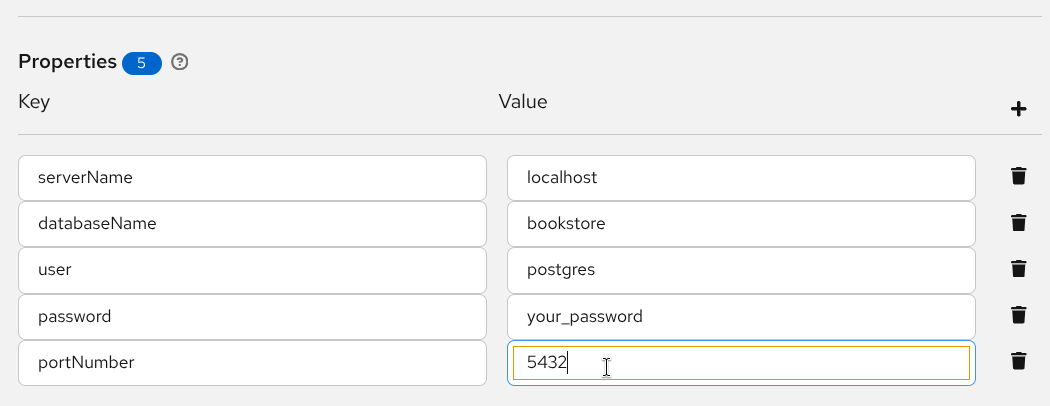

6. Fill properties name and value as following:

   Key	Value
   serverName	localhost
   databaseName	bookstore
   user	postgres
   password	{{db.password}}
   portNumber	5432





This adds beans block

- beans:
    - name: bookDataSource
      type: org.postgresql.ds.PGSimpleDataSource
      properties:
        serverName: localhost
        databaseName: bookstore
        user: postgres
        password: '{{db.password}}'
        portNumber: 5432

Step 2 — Create a route using the bean

Now create a route that uses this datasource bean to insert book records:

1. Click the Design tab to return to the canvas

2. Kaoto creates a default timer-to-log route. Configure the Timer component:

   • Timer Name → bookInsertTimer
   • Period → 10000 (runs every 10 seconds)

3. Insert an SQL component between Timer and Log:

   • Query → INSERT INTO books (title, author, isbn, published_year) VALUES ('Camel Integration Patterns', 'John Smith', '978-0321200686', 2003)
   • Data Source → Select #bookDataSource from the dropdown

4. Update the Log step message:

   • Message → Book inserted successfully: ${body}

The generated structure looks like this:

Image Preview View YAML

View Image YAML Source

- route:
    id: route-book-insert
    from:
      uri: timer
      parameters:
        timerName: bookInsertTimer
        period: "10000"
      steps:
        - to:
            uri: sql
            parameters:
              query: INSERT INTO books (title, author, isbn, published_year) VALUES ('Camel Integration Patterns', 'John Smith', '978-0321200686', 2003)
              dataSource: "#bookDataSource"
        - log:
            message: "Book inserted successfully: ${body}"

Step 3 — Run the integration

1. Ensure PostgreSQL is running and the bookstore database exists

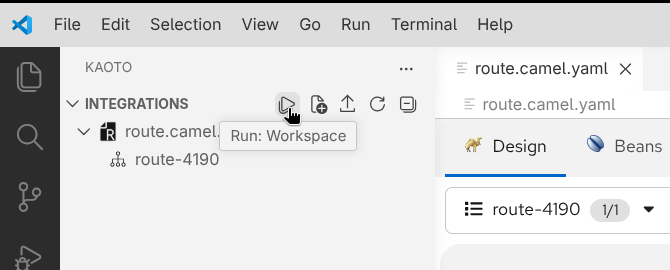

2. In Kaoto, click the Run button in the toolbar





3. The integration will start and begin inserting book records every 10 seconds





Expected Output

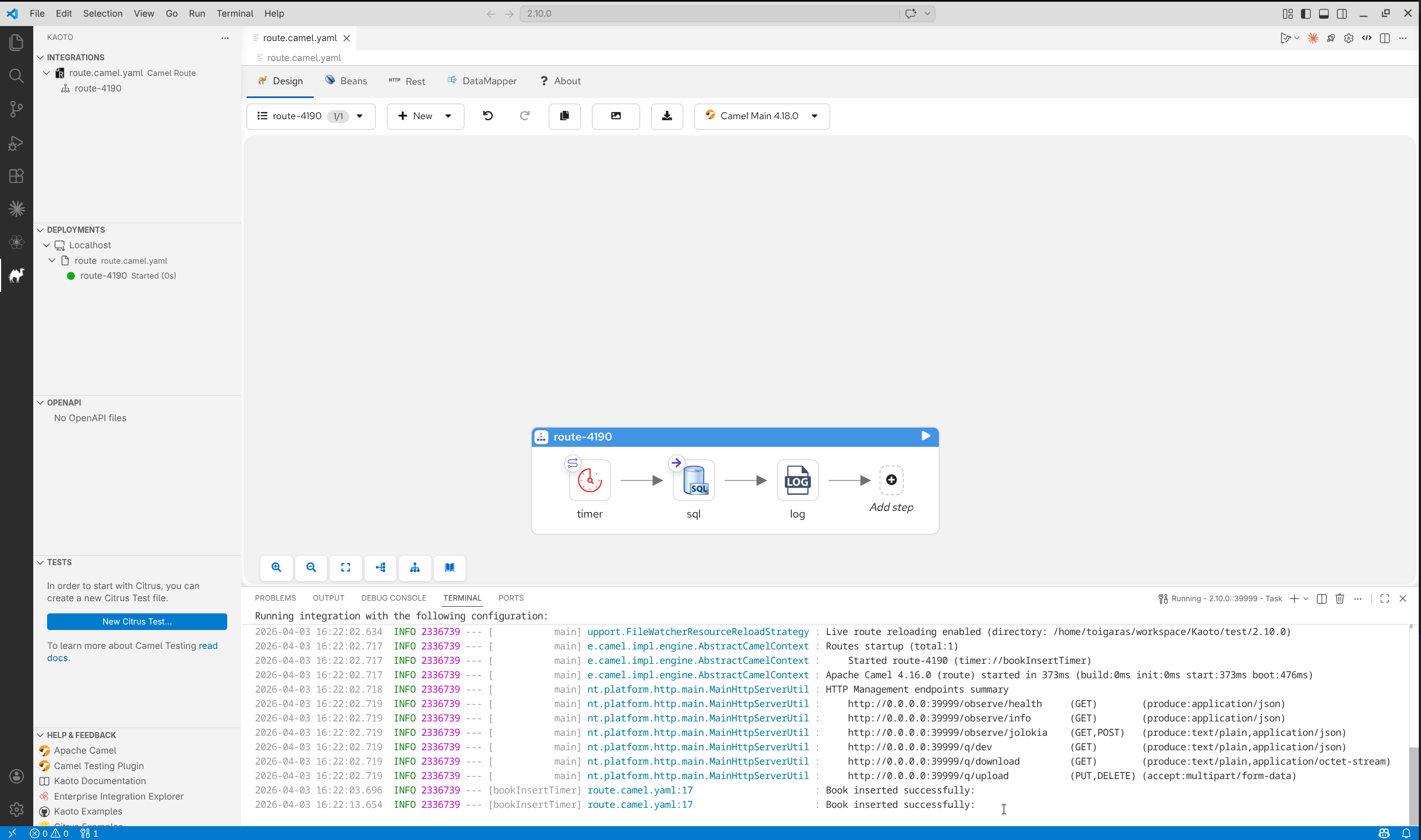

When the integration runs successfully, you should see output similar to:

INFO  [main] Apache Camel 4.18.1 (book-database) started in 156ms
INFO  [bookInsertTimer] Book inserted successfully: 1
INFO  [bookInsertTimer] Book inserted successfully: 1

Verify the Data

Connect to your PostgreSQL database and query the books table:

SELECT * FROM books ORDER BY created_at DESC LIMIT 5;

You should see the newly inserted book records:

 id |           title            |   author   |      isbn      | published_year |         created_at
----+----------------------------+------------+----------------+----------------+----------------------------
  2 | Camel Integration Patterns | John Smith | 978-0321200686 |           2003 | 2026-04-03 14:59:57.165154
  1 | Camel Integration Patterns | John Smith | 978-0321200686 |           2003 | 2026-04-03 14:59:47.221565

Complete Integration YAML

Here’s the complete working integration combining the bean definition and route:

- beans:
    - name: bookDataSource
      type: org.postgresql.ds.PGSimpleDataSource
      properties:
        serverName: localhost
        databaseName: bookstore
        user: postgres
        password: '{{db.password}}'
        portNumber: 5432

- route:
    id: route-book-insert
    from:
      uri: timer
      parameters:
        timerName: bookInsertTimer
        period: "10000"
      steps:
        - to:
            uri: sql
            parameters:
              query: INSERT INTO books (title, author, isbn, published_year) VALUES ('Camel Integration Patterns', 'John Smith', '978-0321200686', 2003)
              dataSource: "#bookDataSource"
        - log:
            message: "Book inserted successfully: ${body}"

Scenario 2: Start from the step, create the bean inline

This scenario demonstrates creating a bean directly from a component’s configuration panel, useful when you’re building a route and realize you need a new bean. We’ll use the same book insertion example, but create the bean inline while configuring the SQL component.

Step 1 — Add an SQL step to your route

1. Open a Camel integration file in Kaoto and click the Design tab at the top of the Kaoto editor

2. Kaoto creates a default timer-to-log route. Insert an SQL component between Timer and Log

3. In the SQL step configuration, you’ll need to specify:

   • Query — INSERT INTO books (title, author, isbn, published_year) VALUES ('Camel Integration Patterns', 'John Smith', '978-0321200686', 2003)
   • Data Source — Reference to a datasource bean

4. Locate the Data Source field and click it





Step 2 — Create the bean from the Data Source field

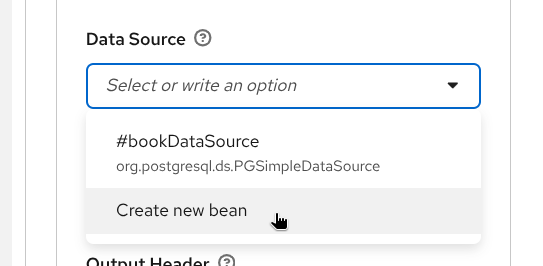

1. In the dropdown, click Create new bean

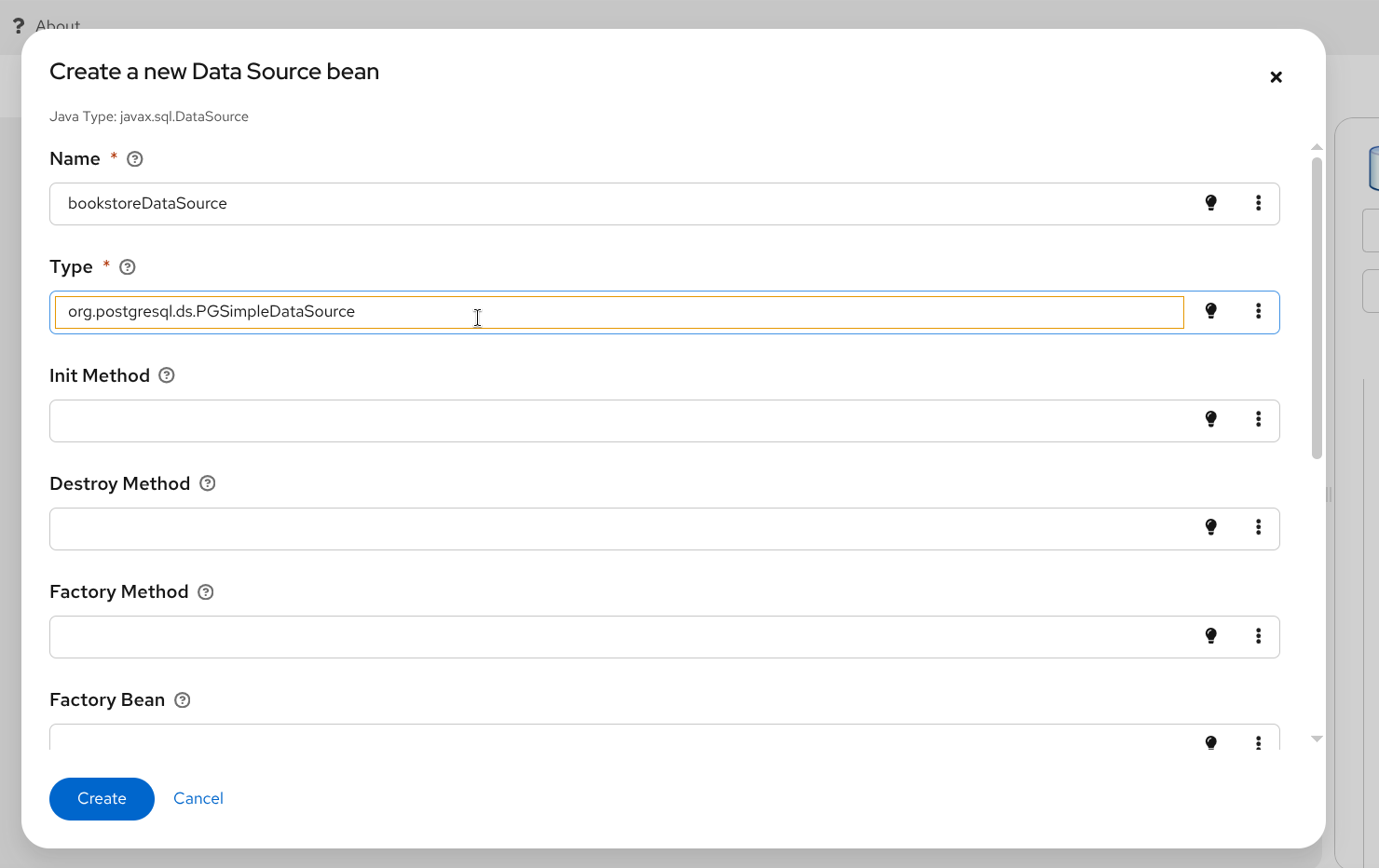

2. A modal dialog opens — fill in:

   • name → bookstoreDataSource
   • type → org.postgresql.ds.PGSimpleDataSource





3. Add the connection details under properties:

   Key	Value
   serverName	localhost
   databaseName	bookstore
   user	postgres
   password	{{db.password}}
   portNumber	5432

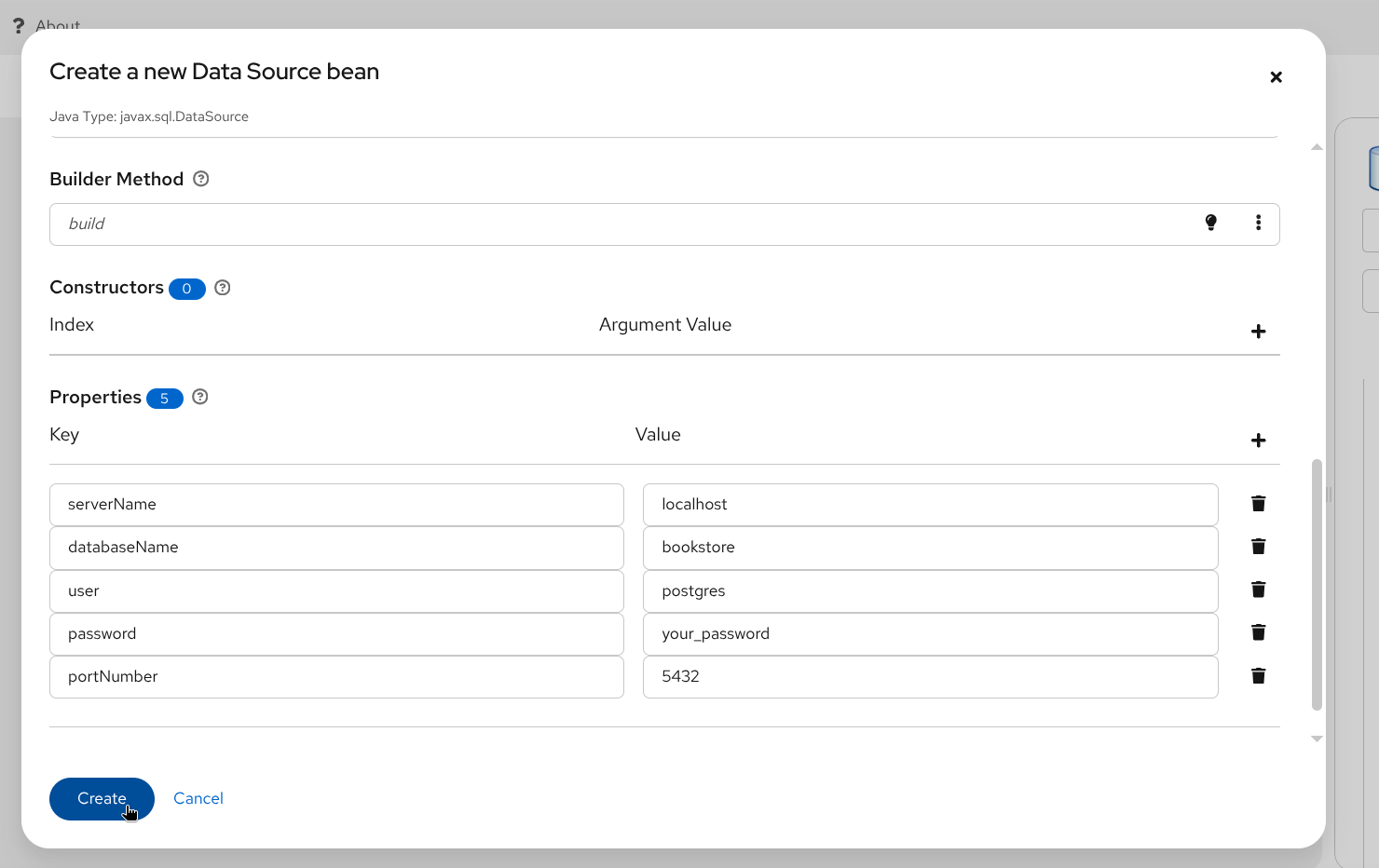

4. Click Create

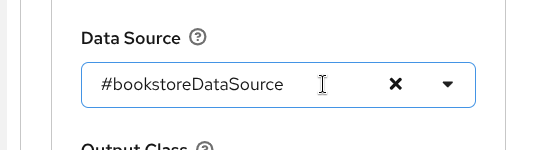

The bean is added to the beans list and the Data Source field is automatically set to reference it — in a single action.

This adds beans block

- beans:
    - name: bookstoreDataSource
      type: org.postgresql.ds.PGSimpleDataSource
      properties:
        serverName: localhost
        databaseName: bookstore
        user: postgres
        password: '{{db.password}}'
        portNumber: 5432

Editing a Bean

1. Click the Beans tab at the top of the Kaoto editor





2. In the Beans list at the left, click the row for the bean you want to edit — it shows all fields of the Bean at right

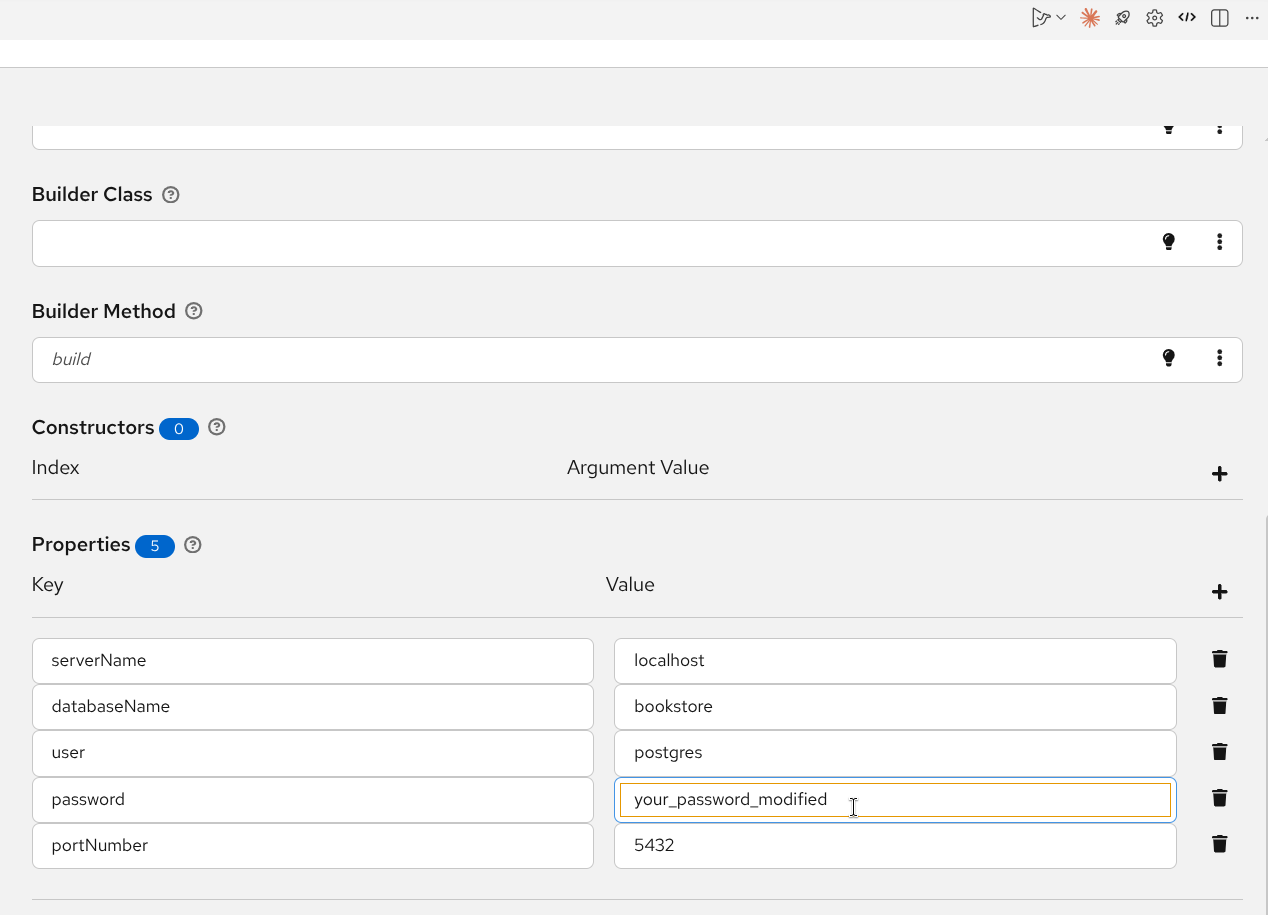

3. Modify the values as needed; changes are applied immediately

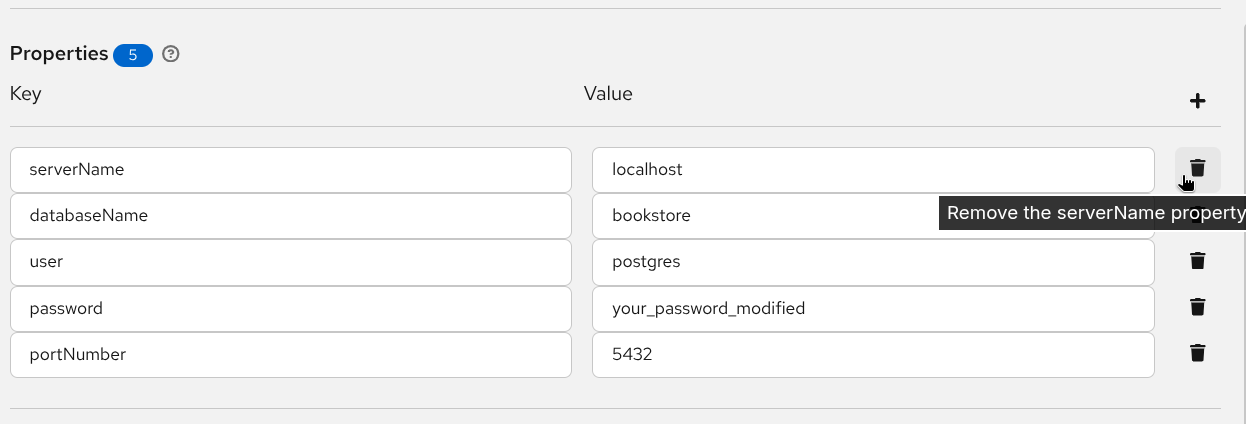

To add a property, fill in a new key-value pair in the properties section. To remove a property, click the remove icon next to it.

Deleting a Bean

1. Click the Beans tab at the top of the Kaoto editor

2. Click the Delete button (trash icon) on the right side of the bean row
