Loop Mappings

Overview

Loop mappings iterate over a source collection and apply a set of field mappings to each item. The DataMapper supports two loop instructions:

• for-each — Iterate over every item in a source collection and map its fields to the target
• for-each-group — Group the items of a source collection by a key or pattern, then map each group

Collection fields are identified by the layer icon in the document tree.

For-Each Mapping

Use xsl:for-each when you want to transform each item of a source collection into a corresponding target item.

Steps

1. Identify the target collection field — Look for the layer icon on the target field

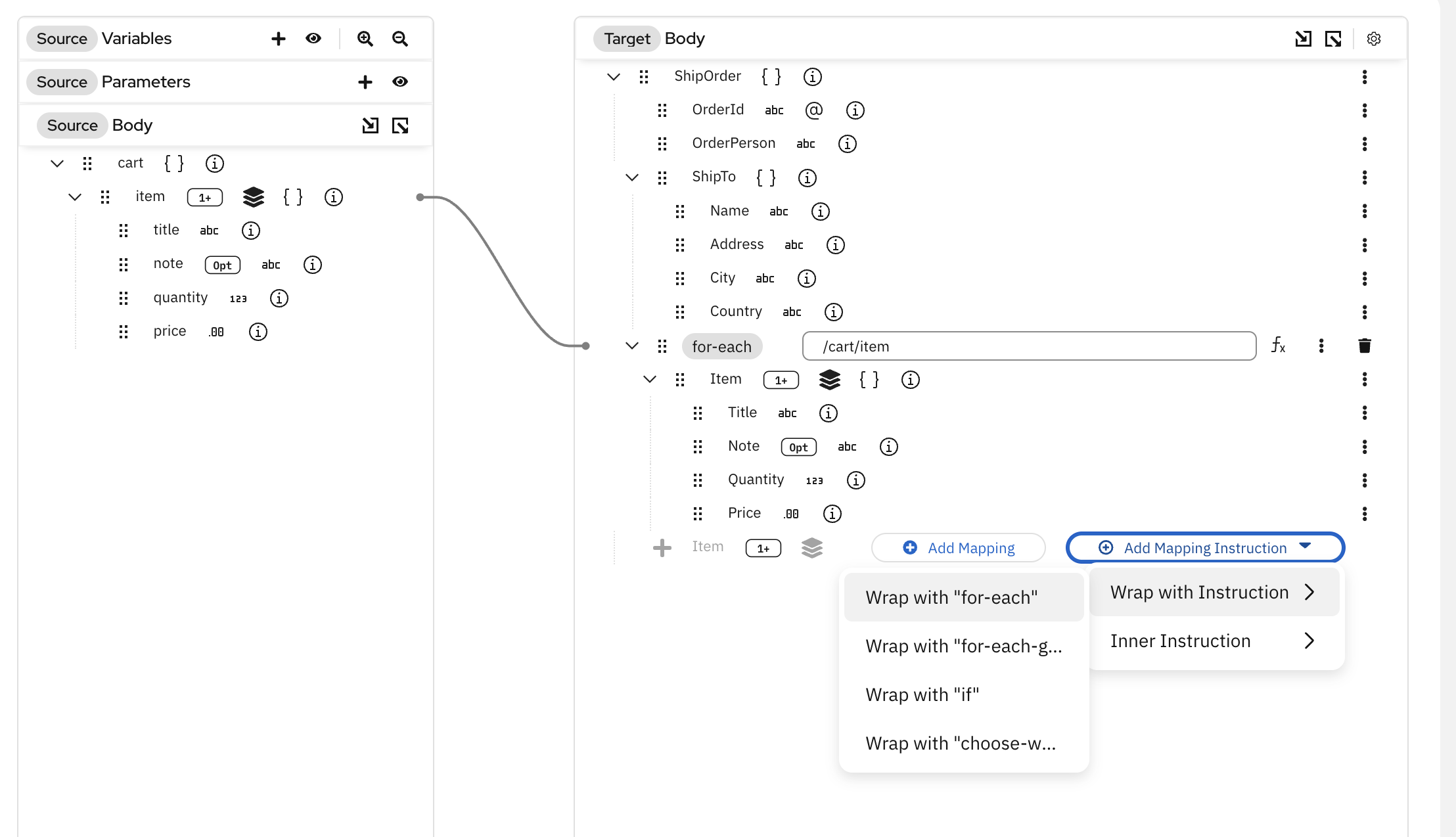

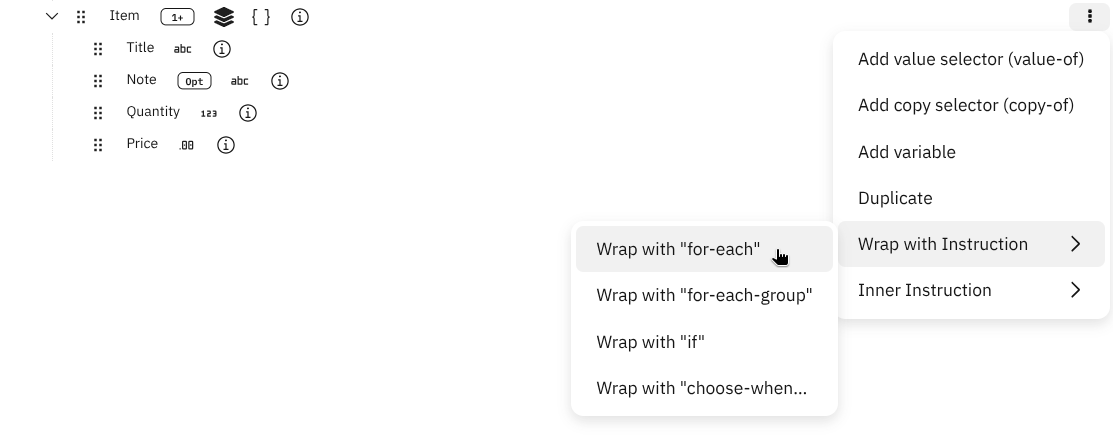

2. Click the ⋮ menu on the target collection field and select “Wrap with Instruction” → “Wrap with for-each”

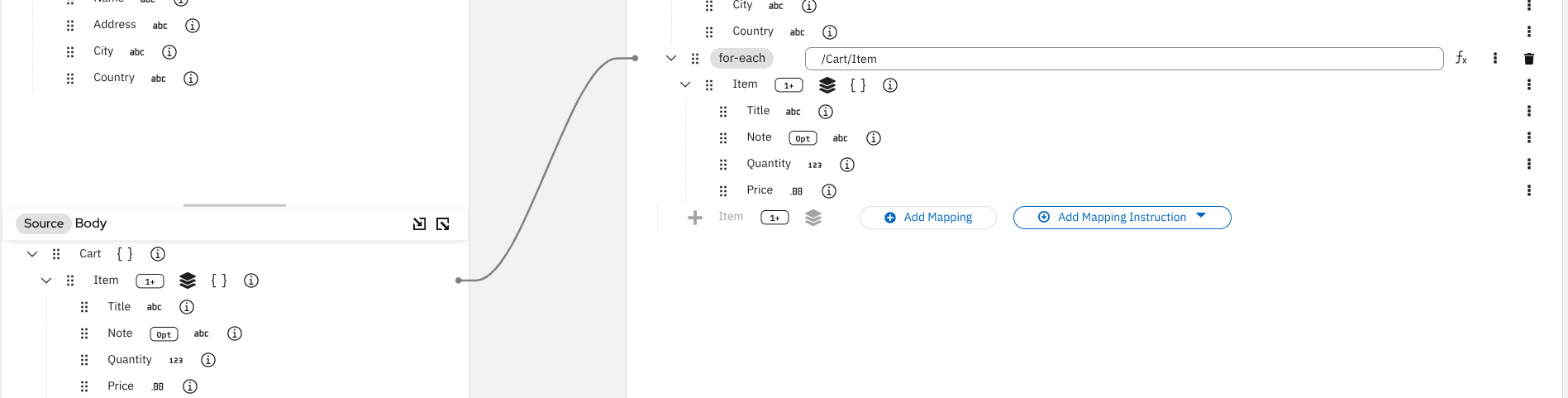

3. Specify the source collection — Choose which source collection to iterate over

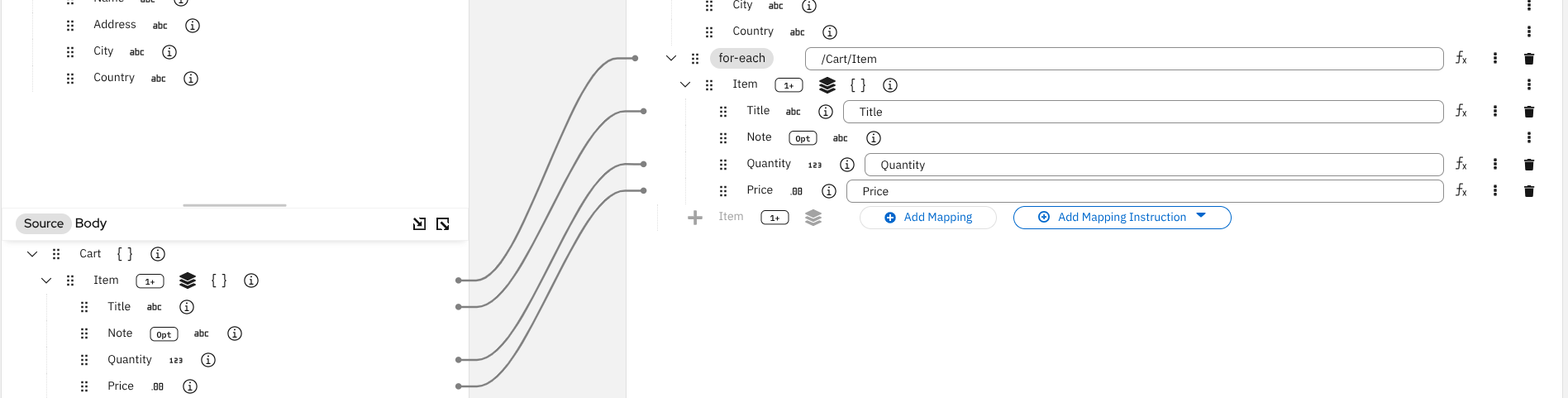

4. Map the collection item fields — Create mappings for individual fields within each collection item





Inner “for-each”

Use Inner “for-each” when the target field is always emitted (not a collection) but its content should be produced by iterating a source collection. Apply it to the target field instead of wrapping it:

1. Click the ⋮ menu on the target field and select “Inner Instruction” → “Inner for-each”
2. Enter the source collection XPath on the inner for-each node
3. Map child fields inside the for-each scope

The outer target field is always written to the output; the for-each controls what is written inside it.

Sorting For-Each Results

Add xsl:sort to a for-each to control the output order.

Steps

1. Create a for-each mapping as described above

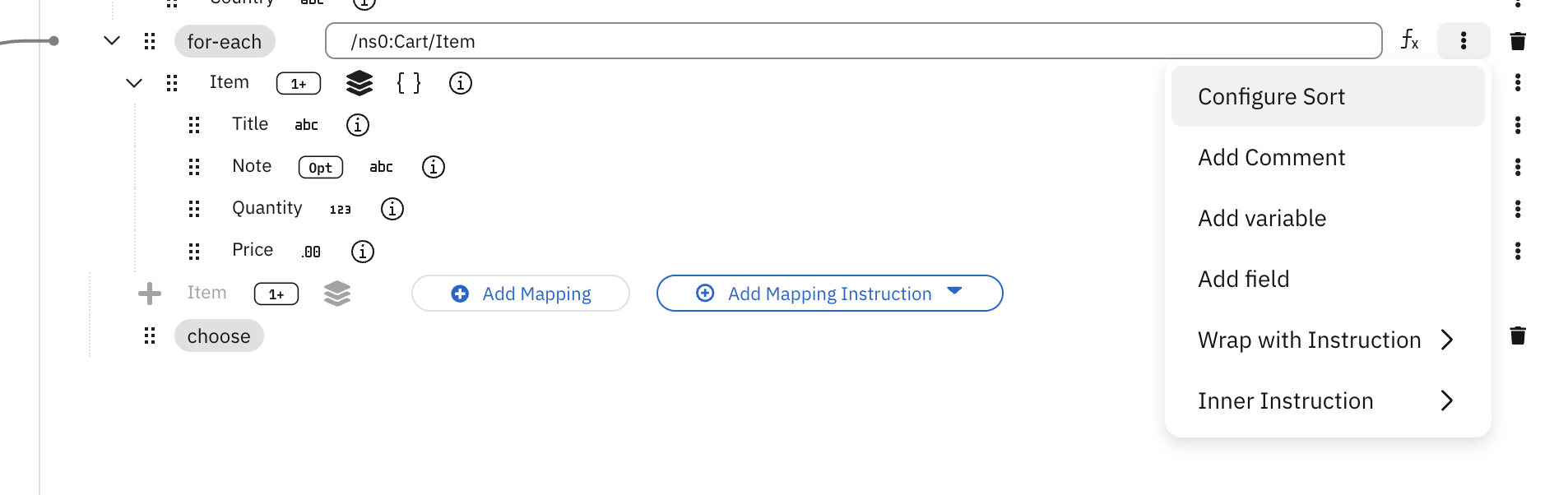

2. Click the ⋮ menu on the for-each node and select “Configure Sort”

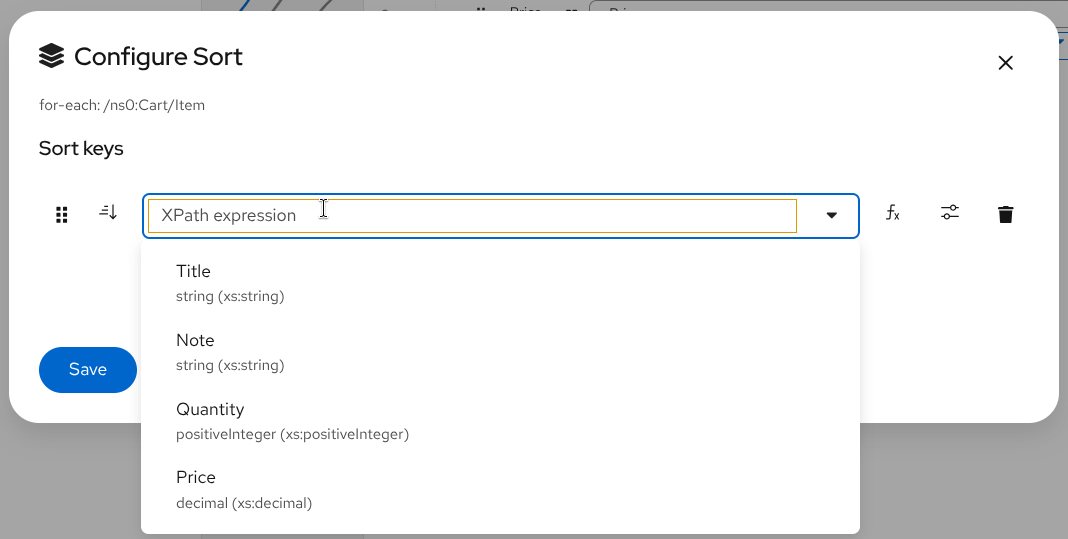

3. Configure sort keys — Enter the XPath expression for the field to sort by, or type ahead to select a field

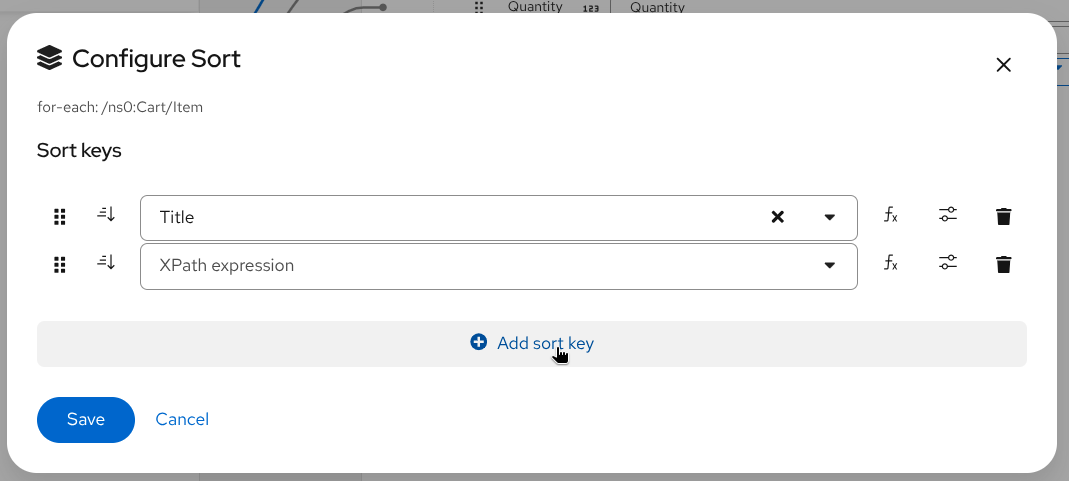

4. Add additional sort keys (optional) — Click “Add sort key” to add secondary sort criteria; items are sorted by each key in order

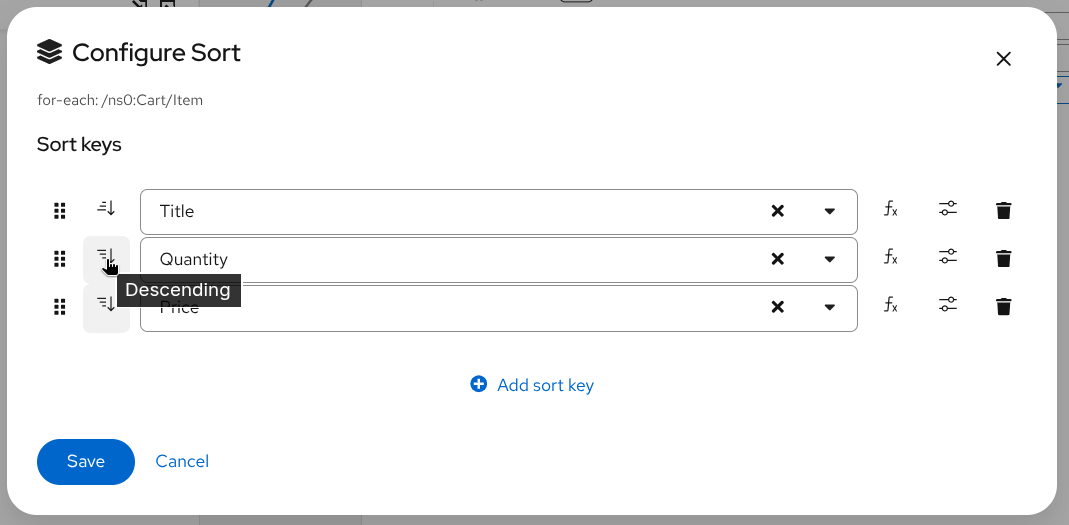

5. Configure Ascending/Descending (optional) — Toggle the direction per sort key

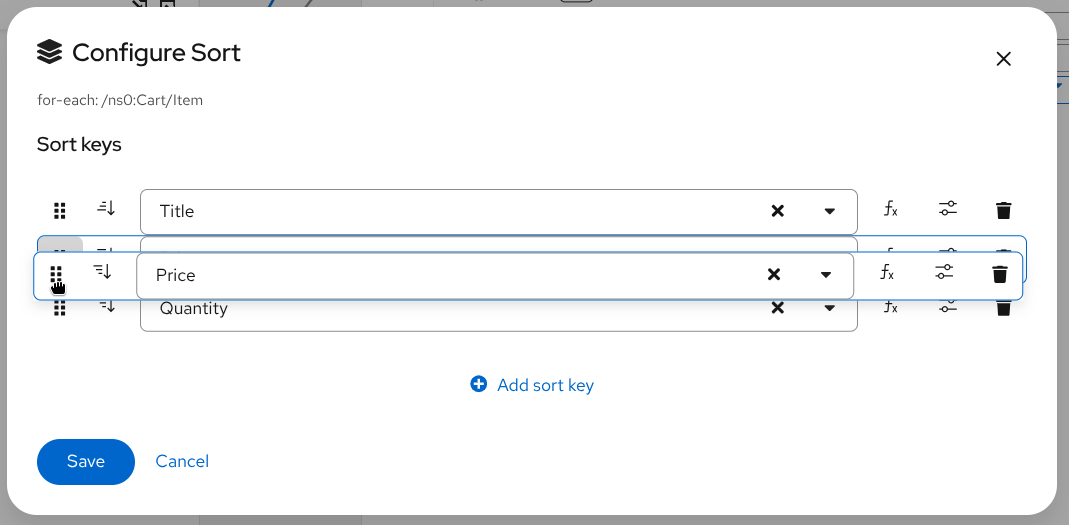

6. Re-order sort keys (optional) — Drag the handle to reorder

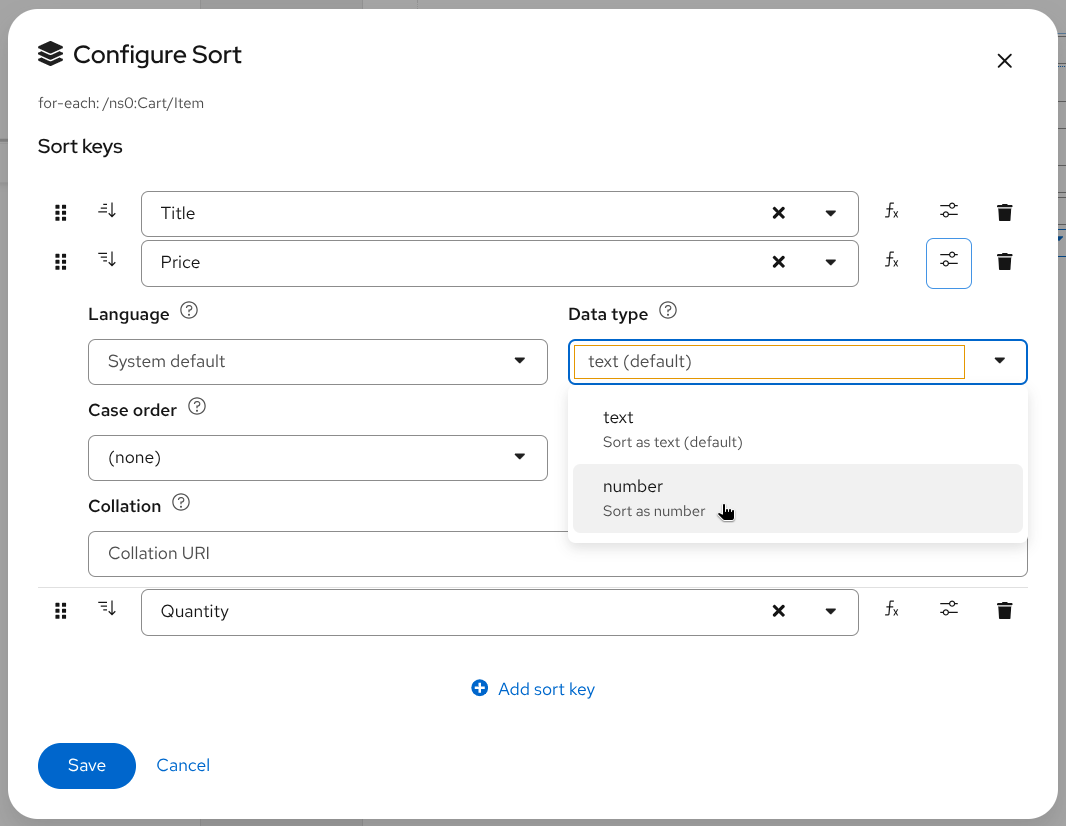

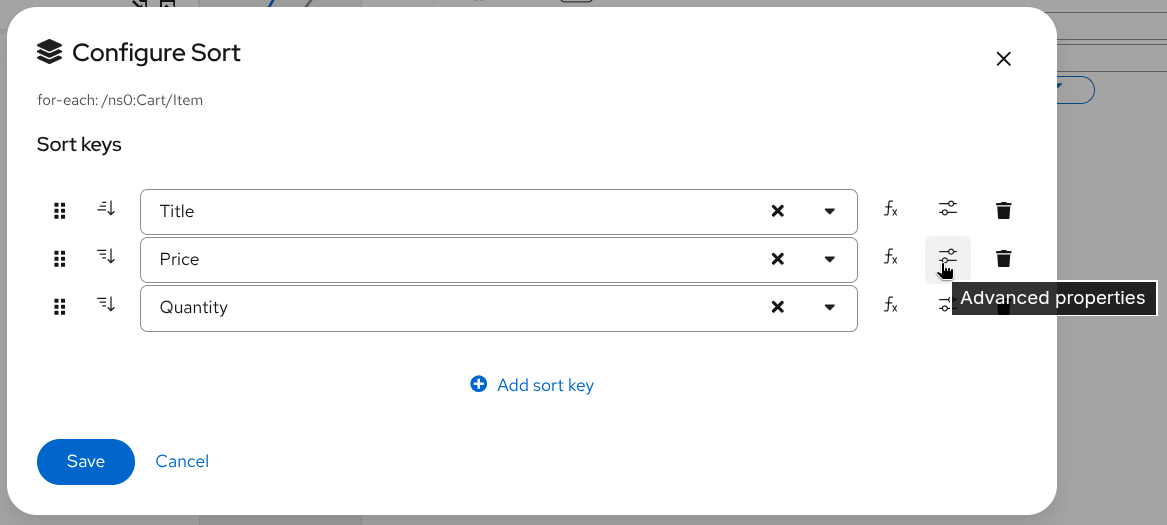

7. Expand advanced properties (optional) — Click the slider button on a sort key for data-type and case-order options

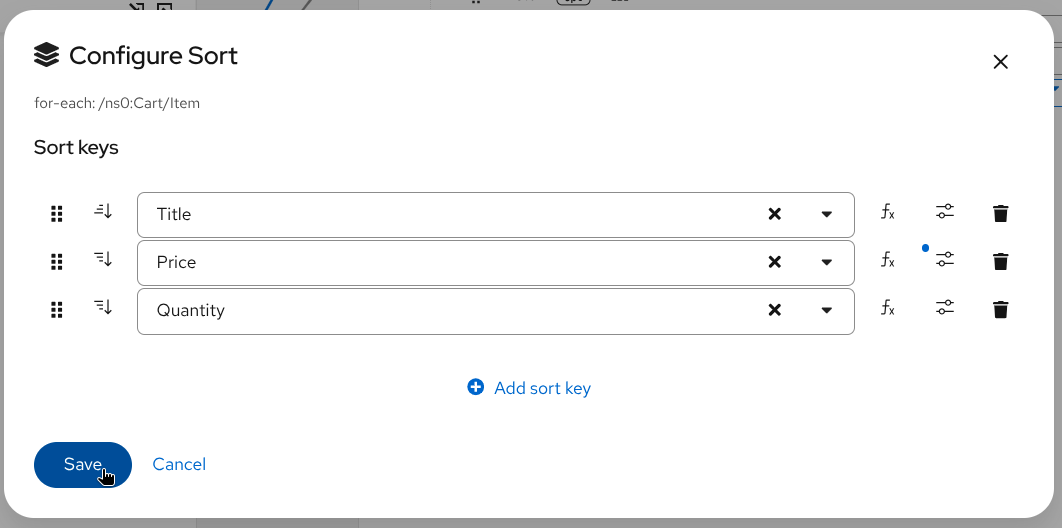

8. Click Save to apply





Multiple For-Each Mappings

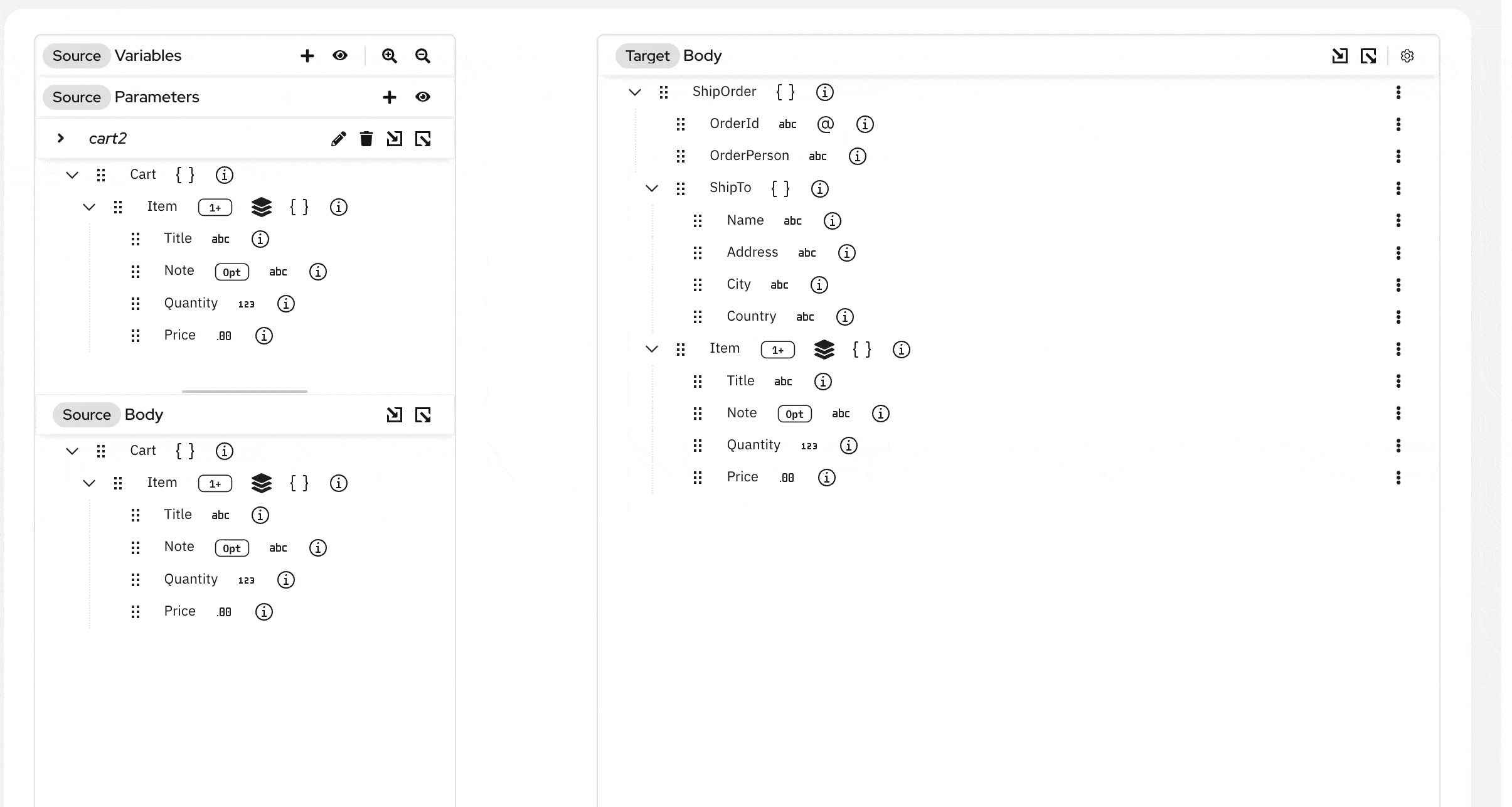

Merge multiple source collections into a single target collection by stacking multiple for-each mappings under the same target field.

Steps

1. Create the first for-each mapping as described above

2. Add another for-each — Click “Add Mapping Instruction” in the placeholder below the first mapping and select “Wrap with for-each”

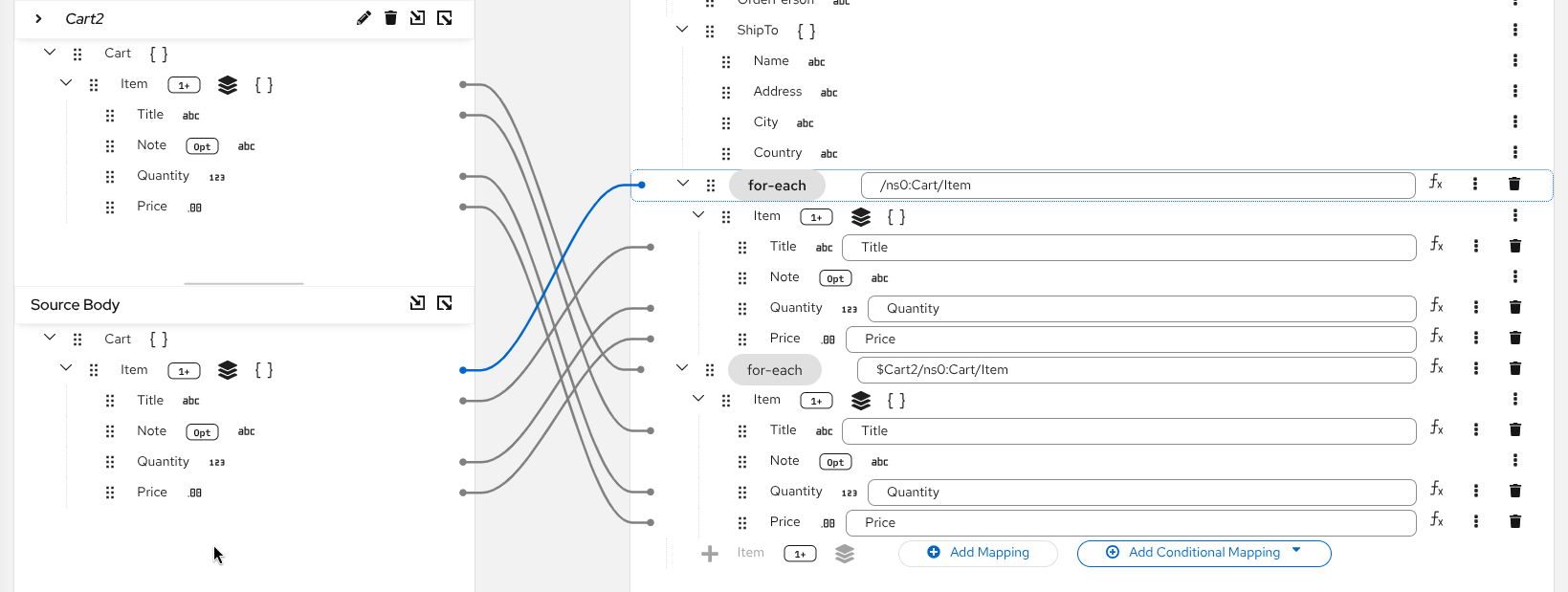

3. Configure the second collection — Select the source collection and map its fields





For-Each-Group Mapping

Use xsl:for-each-group when you need to group items from a source collection before mapping them. Each group is processed as a unit — for example, grouping order lines by product category and emitting one summary element per category.

Grouping strategies

Steps

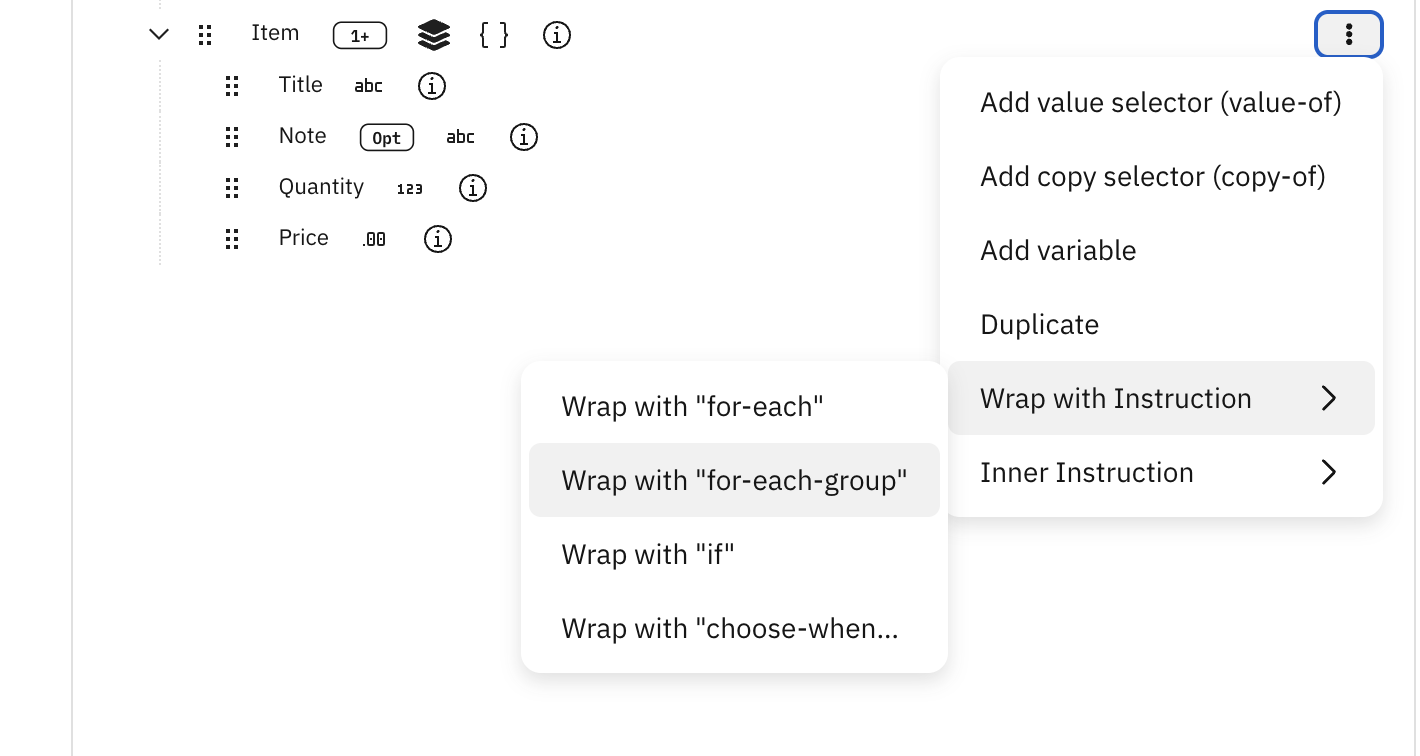

1. Click the ⋮ menu on the target collection field and select “Wrap with Instruction” → “Wrap with for-each-group”

2. Enter the source collection XPath in the inline input — this is the population to group (the select attribute of xsl:for-each-group)

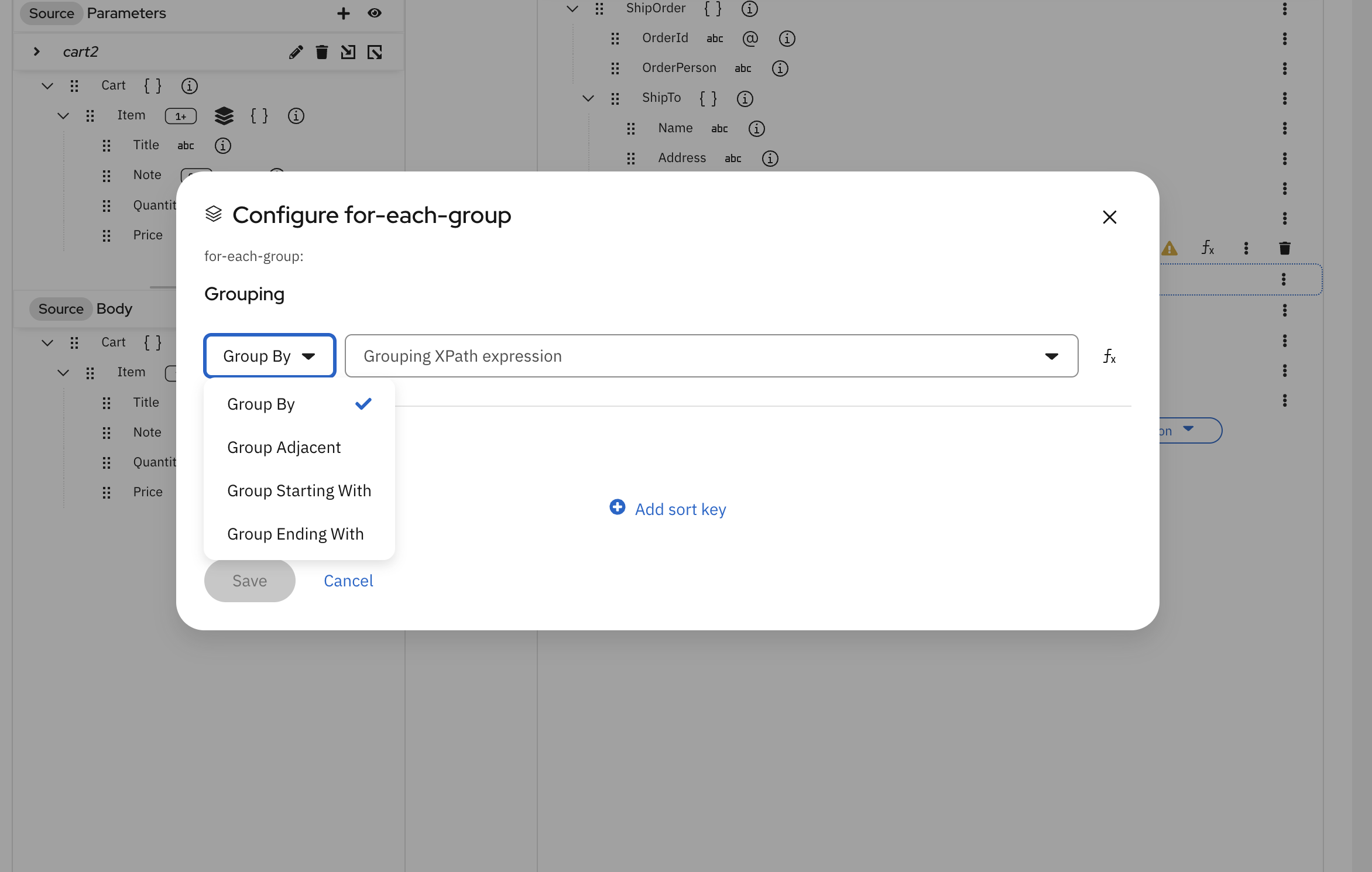

3. Click the ⋮ menu on the for-each-group node and select “Configure for-each-group” to open the configuration modal

4. Choose a grouping strategy from the dropdown — select one of the four strategies described above

5. Enter the grouping value — For Group By or Group Adjacent, enter an XPath expression that produces the grouping key (for example, Category to group by the Category child element). For Group Starting With or Group Ending With, enter an XPath pattern that matches group-boundary items. Use the fx icon to open the XPath Editor for complex expressions.

6. Add sort keys (optional) — Sort the groups before processing using the Sort keys section, which works the same as Sorting For-Each Results above

7. Click Save

8. Map fields inside the group — Inside the for-each-group scope, map fields as normal. Field paths are relative to the current group’s context item.

9. (Optional) Iterate the group members individually — Click the ⋮ menu on the for-each-group node and select “Inner Instruction” → “Inner for-each current-group()”. This inserts a for-each with select="current-group()" inside the group scope so you can map per-item fields.

Inner “for-each-group”

When the target field is always emitted but its content should be produced by grouping a source collection, apply Inner “for-each-group” directly to the target field:

1. Click the ⋮ menu on the target field and select “Inner Instruction” → “Inner for-each-group”
2. Enter the source collection XPath on the inner for-each-group node
3. Click the ⋮ menu on the for-each-group node and select “Configure for-each-group” to set the grouping strategy and expression
4. Map fields inside the group scope

Next Steps

1. Variables — use xsl:variable as mapping sources inside loops
2. XPath Editor — write complex grouping and iteration expressions
