Managing Integrations

Managing integrations is a core part of working with Kaoto. This guide covers everything you need to know about creating, organizing, and managing integrations in your projects.

Understanding Resource Types

Kaoto supports three main resource types for building integrations, each determined by its file extension:

Camel Route (.camel.yaml)

In Apache Camel, a route is a set of processing steps that are applied to a message as it travels from a source to a destination. A route typically consists of a series of processing steps that are connected in a linear sequence.

Key characteristics:

• Supports multiple integrations per file (though single integration per file is recommended)
• Full access to all Camel components and patterns
• Ideal for complex integration scenarios

Learn more about Apache Camel Routes

Kamelet (.kamelet.yaml)

Kamelets are reusable integration templates that encapsulate integration logic. Think of them as pre-built, configurable integration components that you can use across multiple projects.

Key characteristics:

• Single integration per file only
• Designed for reusability and sharing

Learn more about Apache Camel Kamelets

Pipe (.pipe.yaml)

Pipes connect Kamelets together to create simple integration flows. They provide a declarative way to build integrations by connecting sources to sinks through Kamelets.

Key characteristics:

• Single integration per file only
• Simplified syntax for connecting Kamelets

Learn more about Apache Camel Pipes

Working with Camel Routes

Best Practice: Single Integration Per File

We strongly recommend organizing your Camel Routes with one integration per file. This approach provides several important benefits:

• Better organization: Each file has a clear, single purpose
• Easier version control: Changes to one integration don’t affect others
• Clearer file structure: Project organization is more intuitive
• Improved maintainability: Easier to find, update, and test individual integrations
• Better collaboration: Reduces merge conflicts in team environments

When to use multi-integration files:

• Legacy code that already uses this pattern
• Tightly coupled integrations that must be deployed together
• Very simple integrations that are logically grouped

For most projects, stick with single integration per file as your default approach.

Creating a New Integration

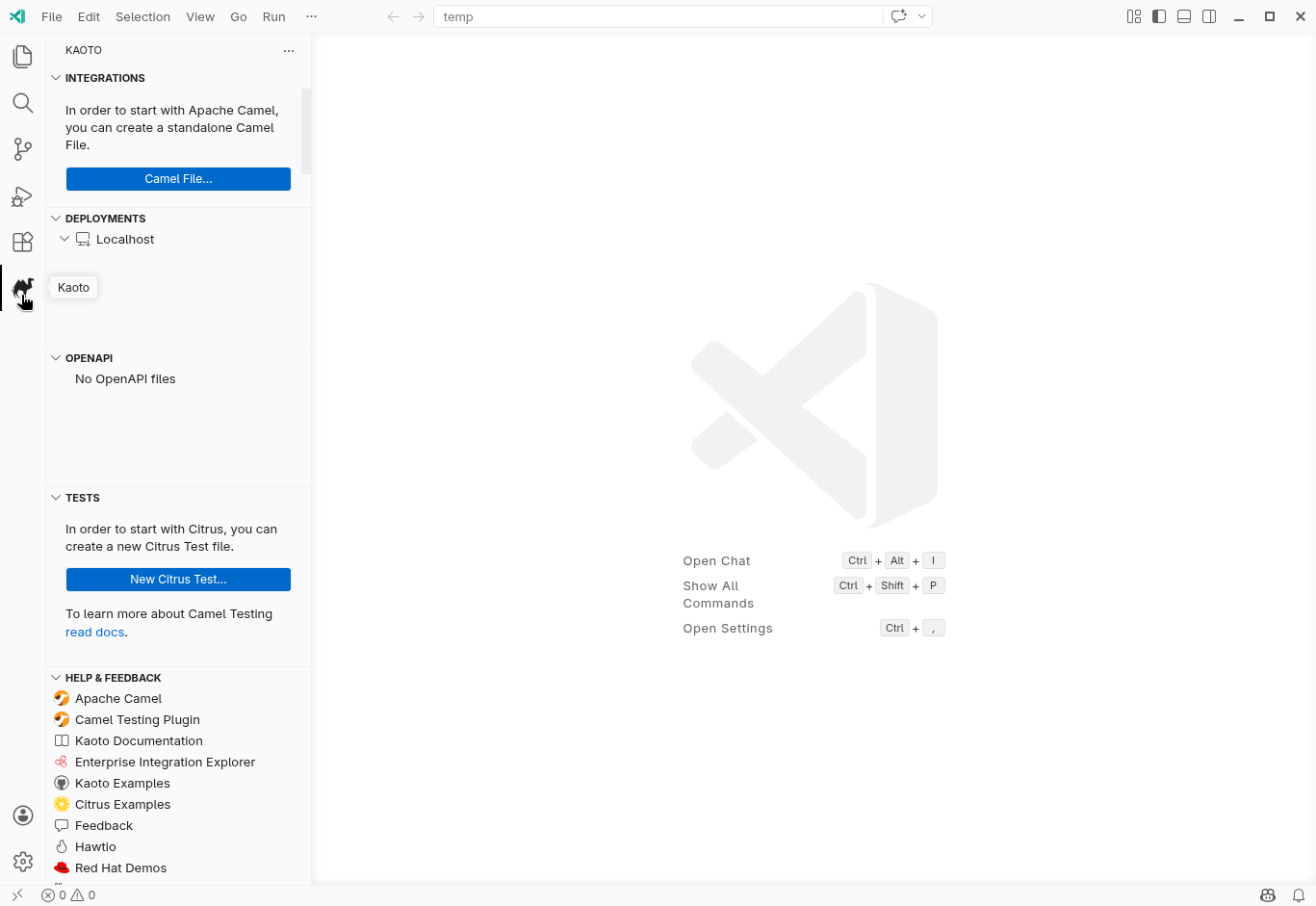

Navigate to Kaoto Perspective

1. Open VS Code
2. Click on the Kaoto icon in the Activity Bar (left sidebar)
3. The Kaoto perspective will open, showing the route designer

Create a New Camel Route

1. In the Kaoto perspective, click “Camel File…”

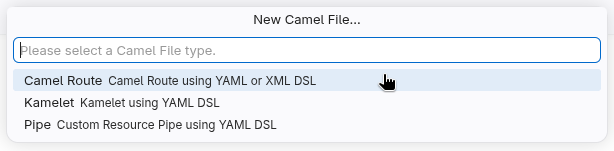

2. Choose “Camel Route” as the route type

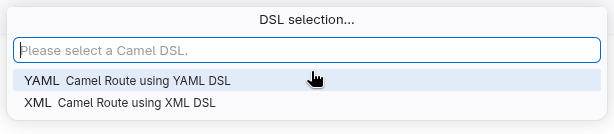

3. Choose “YAML DSL” as the route type

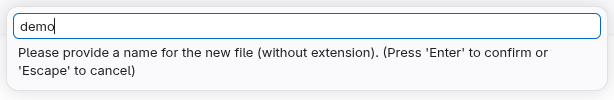

4. Give a name to the new route



5. A basic timer-based route will be created automatically

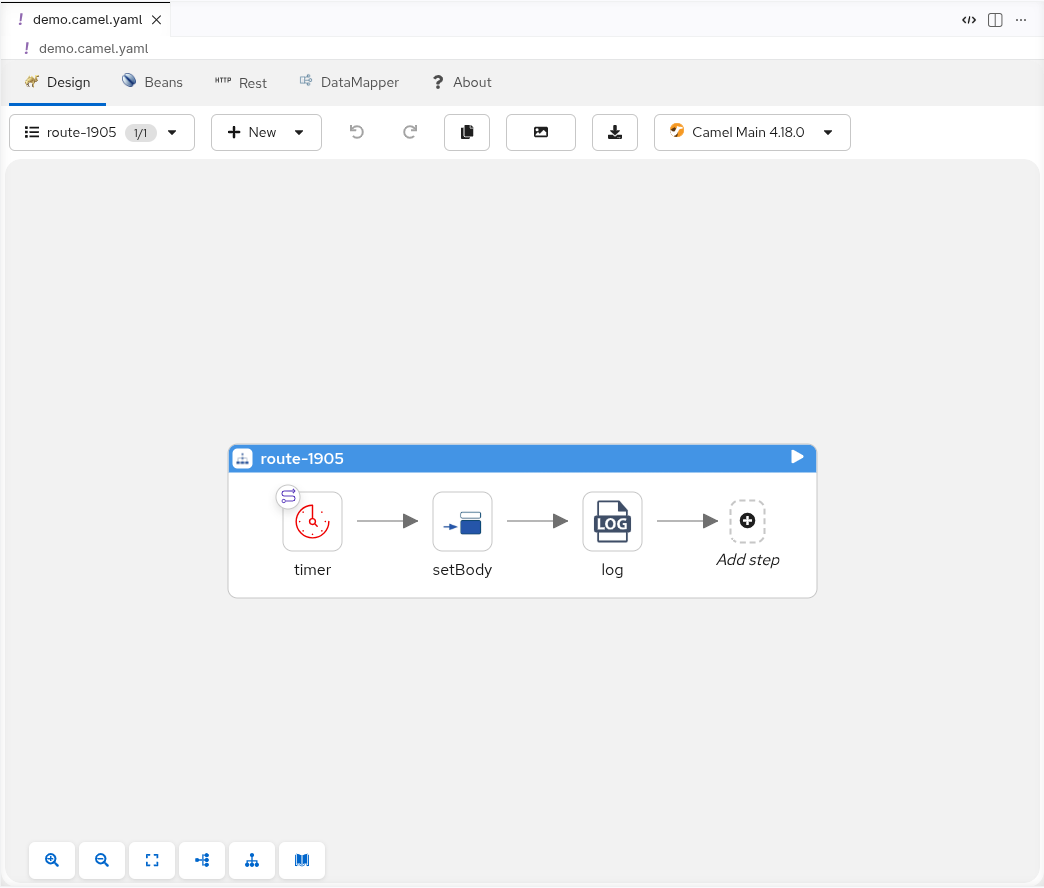

Image Preview View YAML

View Image YAML Source

- route:
    from:
      uri: timer:yaml
      parameters:
        period: "1000"
      steps:
        - setBody:
            simple: Hello Camel from ${routeId}
        - log: ${body}
    id: route-1905

The Flows List

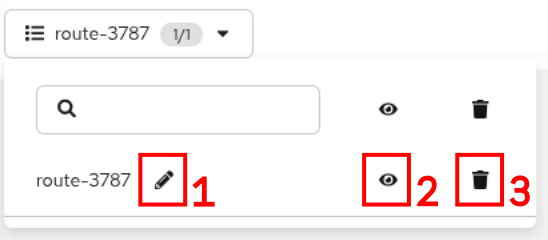

For Camel Routes, the flows list in the top toolbar is your central control panel for managing all integrations and entities in your current file. It provides quick access to:

• 1. Rename: Edit integration names inline
• 2. Visibility control: Show or hide integrations on the canvas
• 3. Delete: Remove integrations from the file

Renaming Integrations

To rename an existing integration:

1. Locate the integration in the flows list

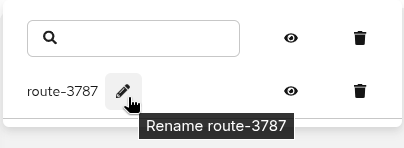

2. Click on the pencil button

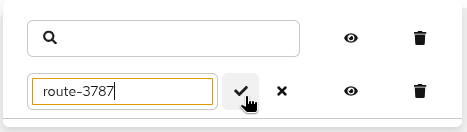

3. Type the new name



4. Press Enter or click in the accept button
5. Save the file

Controlling Integration Visibility

When working with files containing multiple integrations, you can control which integrations are visible on the canvas:

1. Locate the integration in the flows list

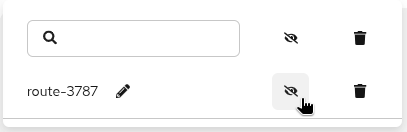

2. Click the eye icon next to the integration name



3. The integration toggles between visible and hidden on the canvas



Hidden integrations remain in the file but don’t clutter your canvas, making it easier to focus on specific integrations in complex files.

Deleting Integrations

To delete an integration:

1. Locate the integration in the flows list

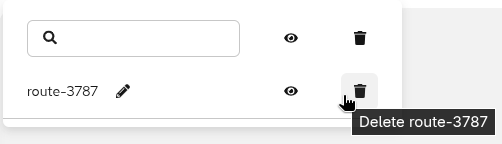

2. Click the delete icon next to the integration name

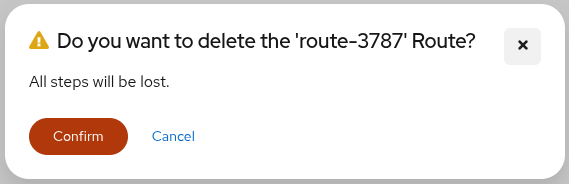

3. Confirm deletion in the dialog that appears



4. The integration content is removed from the file

Other Camel Entities in Kaoto

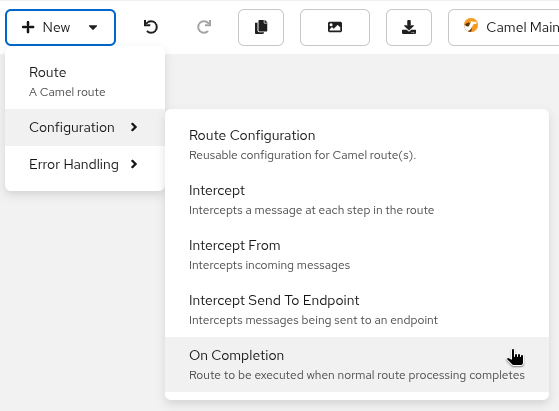

Beyond integrations, Kaoto supports additional Apache Camel entities for advanced integration patterns. All of these can be created via the “Add new” dropdown in the top toolbar.

RouteConfiguration

RouteConfiguration defines reusable configuration that can be applied to multiple integrations, such as error handlers, interceptors, and other cross-cutting concerns.

Use case: Centralize common integration behaviors across your integration, reducing duplication and ensuring consistency.

Learn more about RouteConfiguration

Intercept, InterceptFrom, and InterceptSendToEndpoint

Intercept intercepts and processes all messages passing through the integration, regardless of their source or destination.

Learn more about Intercept

Intercept

Intercept is a simple Intercept that intercepts all messages passing through the integration.

Use case: Implement global error handling, logging, or metrics collection across your integrations.

Learn more about Intercept

InterceptSendToEndpoint

InterceptSendToEndpoint intercepts messages being sent to specific endpoints, allowing you to monitor or modify messages before they reach their destination.

Use case: Monitor, modify, or redirect messages going to particular destinations, useful for debugging or implementing conditional routing.

Learn more about InterceptSendToEndpoint

InterceptFrom

InterceptFrom intercepts messages coming from specific endpoints, allowing you to process or validate messages before they enter your integration logic.

Use case: Process or validate messages from particular sources before integration processing begins, ensuring data quality and consistency.

Learn more about InterceptFrom

ErrorHandler

ErrorHandler defines how errors are handled during message processing, including retry policies, dead letter channels, and error logging strategies.

Use case: Implement robust error handling strategies for your integrations, ensuring failures are handled gracefully and consistently.

Learn more about ErrorHandler

OnException

OnException catches specific exceptions and defines custom handling logic for different error types, allowing you to respond differently based on the type of error encountered.

Use case: Handle different exceptions differently - for example, retry network errors automatically but log validation errors for manual review.

Learn more about OnException
