Running Exported Projects

Running Exported Projects

Overview

When you export a Camel integration to a Maven project using Kaoto, the exported folder includes a .vscode/ directory with pre-configured tasks.json and launch.json files. These give you ready-to-use Run and Debug launch configurations so you can run or deploy your project directly from VS Code without any manual setup.

Two runtimes are supported:

  • Camel Quarkus — runs via quarkus:dev
  • Camel on Spring Boot — runs via spring-boot:run
Note

The .vscode/ configurations are only written if the files do not already exist in the target folder, so any customizations you make are never overwritten on a subsequent export.


Prerequisites

  • Java 17 or later
  • Maven wrapper (./mvnw) — included automatically in the exported project

Running the project

Open the exported project folder in VS Code, then switch to the Run and Debug panel (Ctrl+Shift+D / Cmd+Shift+D). Click the configuration dropdown at the top of the panel to see the available launch configurations.

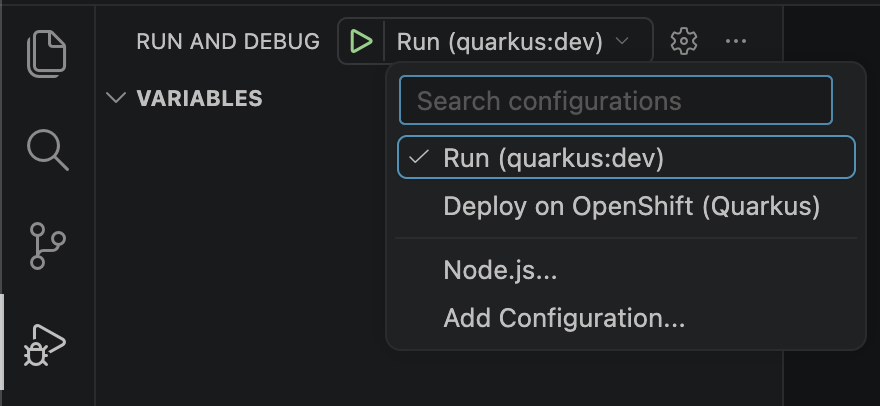

Run and Debug panel showing the available launch configurations for an exported Quarkus project
Run and Debug panel showing the available launch configurations for an exported Quarkus project

Camel Quarkus

Select Run (quarkus:dev) and click the green play button (or press F5).

This triggers the Run (quarkus:dev) background task, which runs:

./mvnw quarkus:dev

The terminal opens automatically and streams the Quarkus dev-mode output. The task is marked as a background task — VS Code considers it started once the Started pattern appears in the output.

Camel on Spring Boot

Select Run (spring-boot:run) and click the green play button (or press F5).

This triggers the Run (spring-boot:run) background task, which runs:

./mvnw spring-boot:run

The terminal opens automatically and streams the Spring Boot startup output.


Deploying to OpenShift

Both runtimes also include a deploy configuration in the dropdown.

Quarkus — Deploy on OpenShift

Select Deploy on OpenShift (Quarkus) and click play. This runs:

./mvnw package -Dquarkus.openshift.deploy=true

Spring Boot — Deploy on OpenShift

Select Deploy on OpenShift (Spring Boot) and click play. This runs:

./mvnw package oc:build oc:apply
Note

OpenShift deployment requires the OpenShift CLI (oc) and an active cluster login. Ensure you are logged in with oc login before triggering the deploy configuration.


Known Limitations

DataMapper files are not copied during export

Warning

If your integration uses a DataMapper step, the export does not copy the DataMapper-specific files to the Maven project. You must copy them manually before running the exported project.

Do not open the DataMapper step in the exported project until you have copied all required files. Opening the DataMapper without the .kaoto file present will reset the mapping and overwrite your .xsl file with an empty transformation — losing all your mapping work.

The following files are not included by the camel jbang export command:

FileDescription
.kaotoWorkspace metadata file — stores xsltPath, sourceBody.filePath, and targetBody.filePath (all paths are relative to the .kaoto file itself)
XSD / JSON schema filesFiles listed in sourceBody.filePath[] and targetBody.filePath[] inside .kaoto
XSL transformation fileFile referenced by xsltPath in .kaoto — your mapping definition, not regenerated by re-exporting

The simplest approach — preserve the original directory structure:

Copy the .kaoto file next to the exported Camel route file, then copy the schema and XSL files at the same paths relative to .kaoto as they had in your original workspace. This preserves all filePath and xsltPath references inside .kaoto without any editing.

Manual steps:

  1. Back up the XSL transformation file referenced by xsltPath in .kaoto — it is your mapping definition and will not be restored by re-exporting.
  2. Copy the .kaoto file next to the exported Camel route (e.g. src/main/resources/camel/).
  3. Copy all schema files (listed in sourceBody.filePath and targetBody.filePath) preserving their paths relative to .kaoto.
  4. Copy the XSL file preserving its path relative to .kaoto.
Tip

If you need to place files in different locations, open the .kaoto file and update xsltPath, sourceBody.filePath, and targetBody.filePath to match the new paths (all relative to the .kaoto file).


Next Steps

  • Runtime Selector — Choose the Camel runtime (Quarkus, Spring Boot, or Main) for your integration before exporting
  • Executing Integrations — Run integrations directly from VS Code without exporting to a Maven project
