4. Kaoto DataMapper

Kaoto DataMapper

In addition to the regular Camel steps, Kaoto supports a Kaoto DataMapper step to be placed in the Camel Route. The Kaoto DataMapper step provides a graphical user interface to create data mappings inside the Camel Route.

Adding a DataMapper step

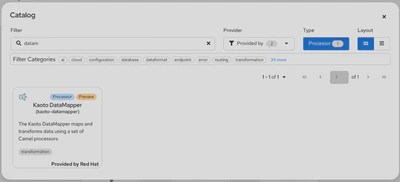

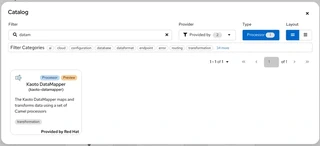

1. Add a Kaoto DataMapper step in your Camel route. When you Append, Prepend or Replace a step in the Kaoto Design view, you can find the Kaoto DataMapper step in the catalog.

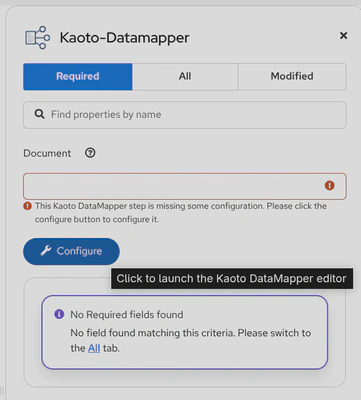

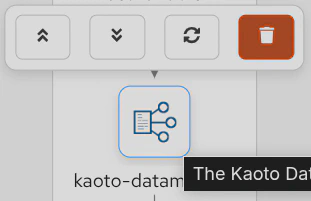

2. Click the added Kaoto DataMapper step in the Kaoto Design to open the config form.

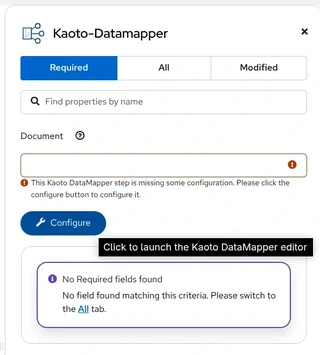

3. In the config form, click the Configure button.

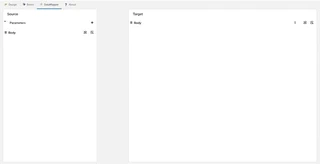

4. This will open the visual DataMapper editor.



Source and Target

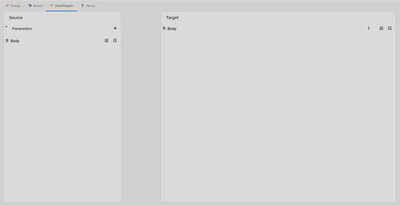

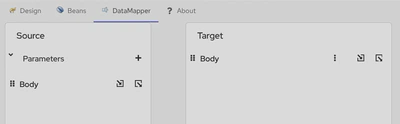

In the DataMapper editor, you can see a Source section at the left and a Target section at the right side.

The Source section represents the input side of your mappings, where the DataMapper step reads the data from. This is mapped to the incoming Camel Message as well as possible Camel Variables.

The Target section represents the output side of your mappings, where the DataMapper step writes the data to. This is mapped to the outgoing Camel Message.

Parameters

The Parameters section inside the Source section is mapped to any of the incoming Camel Variables and Message Headers. For example, if there is an incoming Camel Variable orderSequence, you can consume it by adding a parameter orderSequence in the DataMapper Source/Parameters section.

Follow the below steps to add a parameter.

1. Click the plus + button on the right side of the Parameters title.



2. Now type the parameter name and click the check button on the right.



Attaching Document Schema files

If any of Source Body, Target Body and/or Parameter(s) are structured data, you can attach a schema file and visualize the data structure in a tree style view. The DataMapper supports both XML Schema (XSD) and JSON Schema files.

Follow the below steps to attach a schema file.

1. Place schema file(s) inside the workspace directory.

2. Click Attach a schema button in one of the Source Body, Target Body or Parameters sections.



3. In the Attach schema modal, click the file button.



4. Select the schema file to attach.

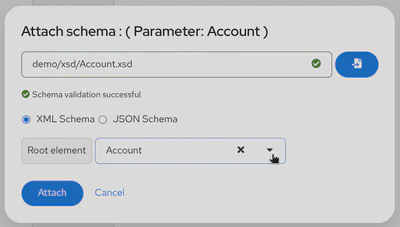

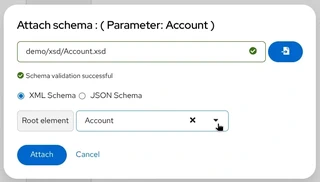

5. New! (XML only) Select the root element. The first element in the schema is selected by default. If the XML schema defines multiple top level elements and you want to use the other element than the first one, select one from the dropdown. This step is applicable only for XML. For JSON, skip to the next.



Here is a demo screencast to choose a root element.

6. Click Attach button.

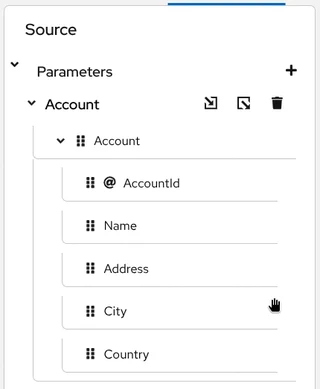

7. Now the document structure is rendered inside a tree.



JSON Schema Document

Kaoto DataMapper supports reading structured JSON parameter(s) and writing a JSON target body. If any of them is a structured JSON data and you have a JSON schema which defines the JSON data structure, you can attach the JSON schema file, render the document tree in DataMapper UI and create data mappings with it.

Follow the below steps to attach a JSON schema file.

1. Place schema file(s) inside the workspace directory.

2. Click Attach a schema button in one of the Target Body or Parameters sections.

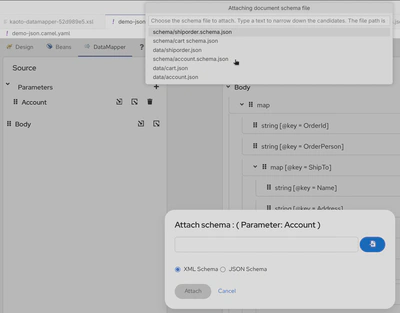

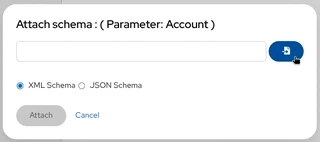

3. In the Attach schema modal, click the file button.



4. Select the schema file to attach.

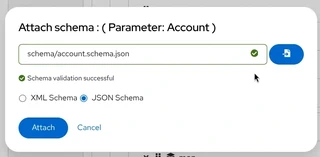

5. If the file extension is .json, it automatically switch the radio button below to JSON Schema. Otherwise, choose JSON Schema. Click Attach button.

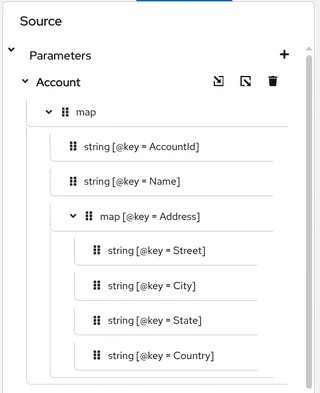

6. Now the JSON schema document structure is rendered inside a tree.



Here is a demo screencast for creating JSON mappings.

JSON schema document tree

When an XML schema document is rendered in DataMapper document tree, their element name and attribute name alone is shown as the field label. For JSON schema document, it is slightly different. Since JSON document field sometimes doesn’t have a name (anonymous), it uses field type as a primary field label.

• map : object field
• array : array field
• string : string field
• number : number field

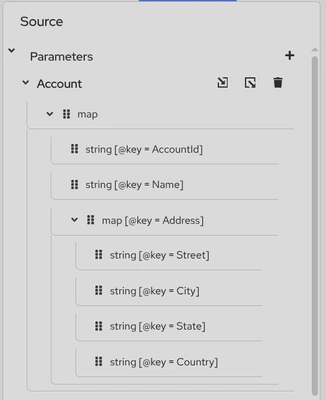

In addition to that, if the field has a name, it will show as a @key attribute following the field type. For example, a string type field with a name AccountId will show the field label string [@key = AccountId].

An anonymous object field will show just map.

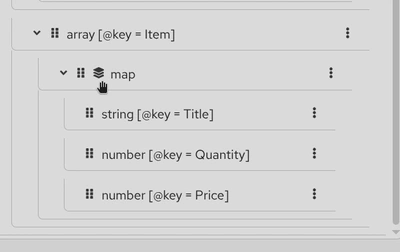

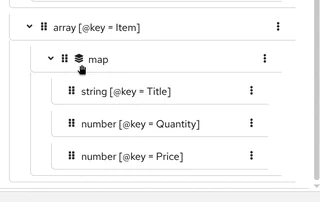

There is one thing that requires attention for array type field. The array type field indicates that its children are collection, in other words repeating field, but not the array type field itself. For example, array type field with the name Item is rendered in DataMapper UI as following:

In this case, the map type field which is a direct child of array type field Item, is a collection field. The layer icon

indicates that the map field is a collection field. This is important when creating a for-each mapping. We will look into how to create a for-each mapping in details later in this manual.

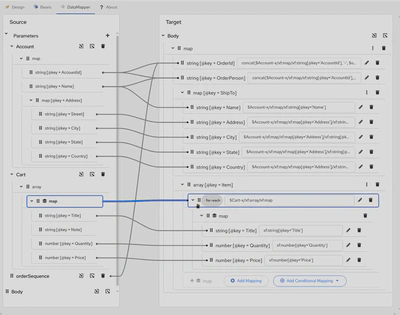

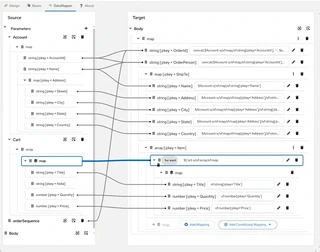

Here is an example JSON data mappings created in Kaoto DataMapper UI. It consumes Account and Cart structured JSON parameters as well as orderSequence primitive parameter, and create a ShipOrder JSON target body.

You might notice that in the XPath expression, it uses $Account-x to refer the parameter Account, not just $Account, but with a suffix -x. Since Account parameter is a structured JSON, it is internally converted into XML with using json-to-xml. $Account-x is a variable which stores that XML document converted from JSON. When data mappings are created through drag and drop, Kaoto DataMapper automatically handles that. However when you edit the XPath expression manually, please keep this fact in mind.

With those JSON specific characteristics in mind, the rest of the way how to create mappings is same for XML and JSON. You can create mappings for XML to XML, XML to JSON, JSON to XML and JSON to JSON with Kaoto DataMapper. We will look into those in the following sections.

Creating simple mappings

Creating a mapping by dragging and dropping a field

When you perform drag and drop between the source and the target, a mapping is created and a line is drawn between the fields.

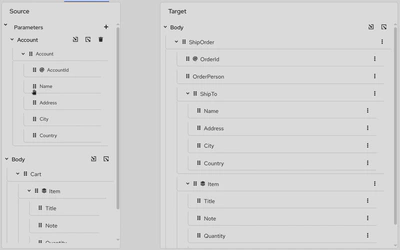

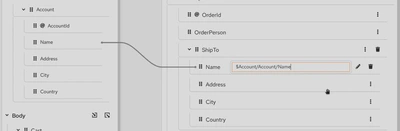

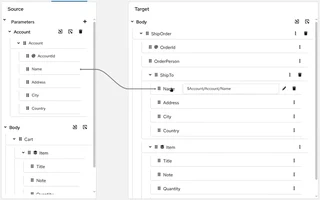

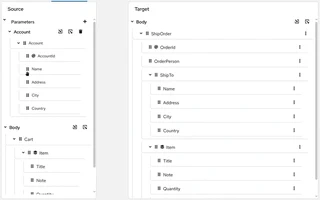

Example: Mapping the Name fields by dragging and dropping the source Name field on the target Name field.

Before:

After:

Creating a mapping by typing an XPath expression

You can also create a mapping by entering a XPath expression.

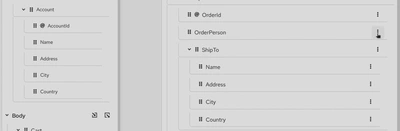

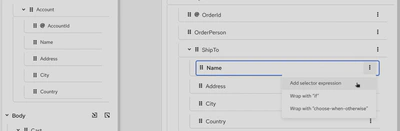

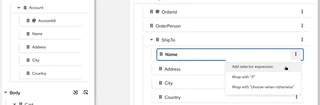

1. Click the 3 dots context menu on the target field and choose Add selector expression.

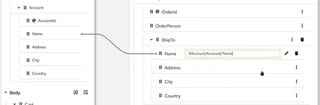

2. Then enter the XPath expression.



Creating conditional mappings

The DataMapper supports creating 3 types of conditional mappings:

• if - The mapping is created only when the specified condition is met.
• choose-when-otherwise - The mapping is created depending on how the condition is satisfied. If the when branch condition is satisfied, the when branch mapping is created. If no when branch condition is satisfied, then the otherwise branch mapping is created.
• for-each - The mapping is created for each item in the collection. Collection means multiple occurrences, which is often represented as an array.

Create a if mapping

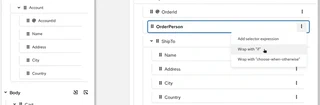

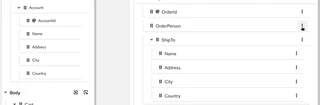

1. Click the 3 dots context menu on the target section’s field. Then select wrap with "if" to create a mapping.

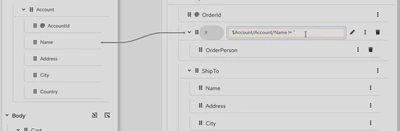

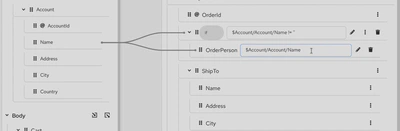

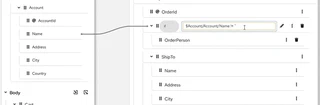

2. Configure the if condition. You can drag the source field and drop it into the input field to start writing a condition, or alternatively type everything manually.

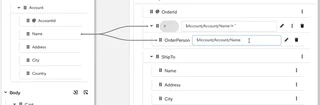

3. Configure the mapping by using drag and drop or by typing it manually.



Create a choose-when-otherwise mapping

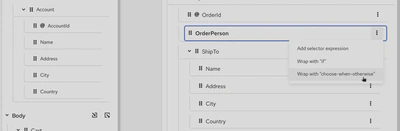

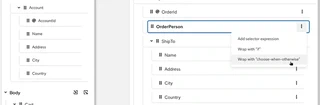

1. Click the 3 dots context menu on the target section’s field. Then select wrap with "choose-when-otherwise" to create a mapping.

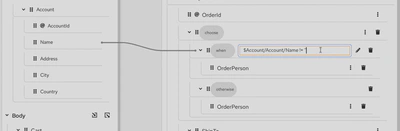

2. Configure the when condition.

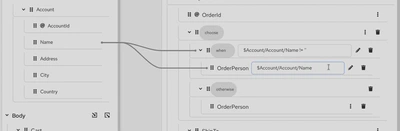

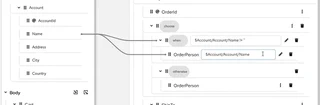

3. Configure the mapping for the when branch.

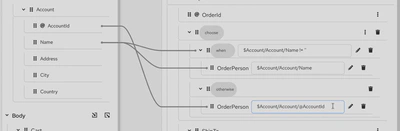

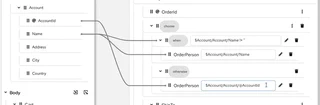

4. Configure the mapping for the otherwise branch.

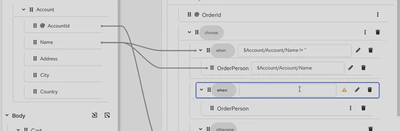

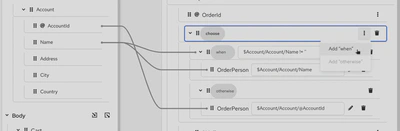

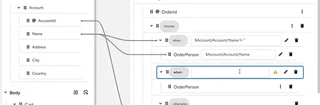

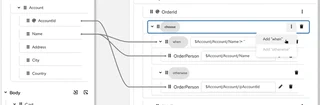

5. If required, you can add one or more when branches. To add another when branch you can click the 3 dots menu on the choose field in the Target section and then select Add "when".





Create a for-each mapping

When a field is a collection field (means multiple occurrences, often represented as an array), you can create a for-each mapping. The layer icon on the field indicates that it is a collection field.

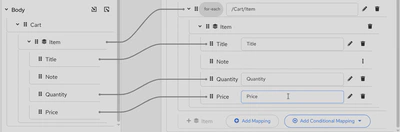

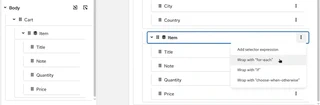

1. Click the 3 dots context menu on the target section’s collection field. Then select wrap with "for-each" to create a mapping.



2. Configure the for-each condition by specifying the source collection field to iterate over.

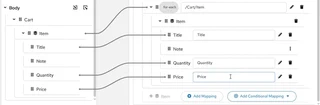

3. Configure the mappings below. Note that the mapping field path is now a relative path from the collection field specified in the for-each condition.



Create multiple mappings for a collection target field

A target collection field can have multiple mappings. For example, it can have multiple for-each loops to merge 2 different source collection fields into one target collection field. Once you create a first mapping, you will see a place holder which has buttons to add more mappings.

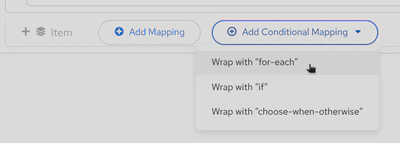

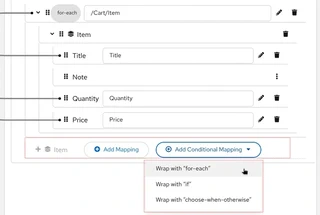

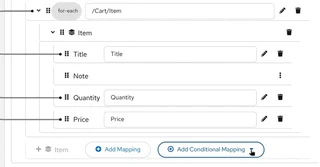

1. After creating a first for-each mapping by following previous section, click Add Conditional Mapping in the placeholder below the added for-each mapping

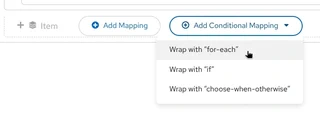

2. Click Wrap with "for-each"

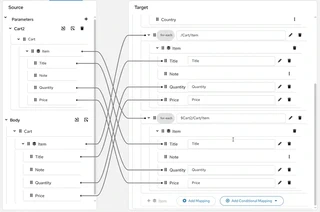

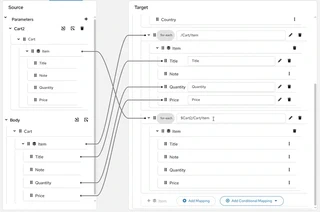

3. Map other source collection to the added for-each mapping



4. Create subsequent mappings

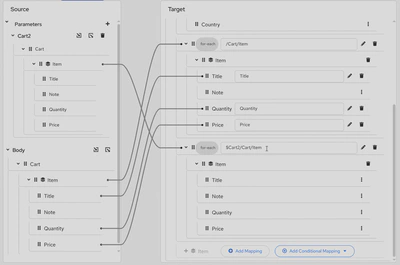

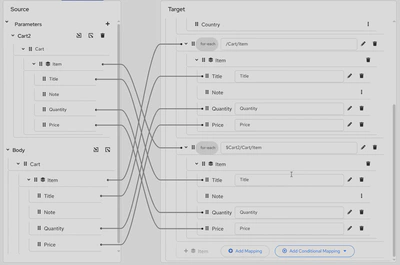

Here is a demo screencast for merging 2 source collection fields with multiple for-each mappings.

Using XPath expression editor

If you want to write something more in XPath expression rather than just a field path, you can launch the XPath expression editor and work with it. There is a pencil icon on the target field which launches the XPath expression editor when you click it.

1. Click the pencil button on a target field which has a mapping.

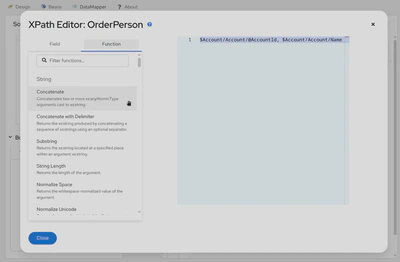

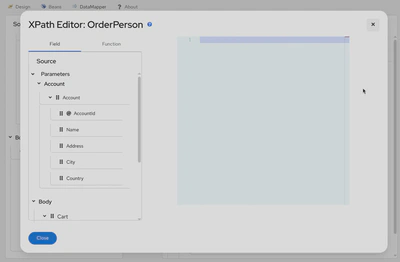

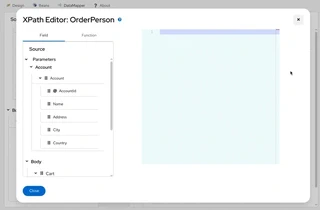

2. This will open up the XPath editor.

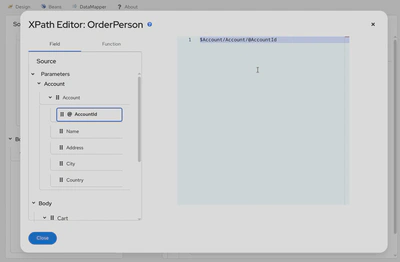

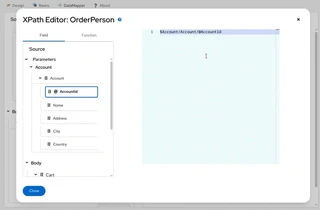

3. You can then type in the editor at the right or drag a Field from the left and drop onto the editor.

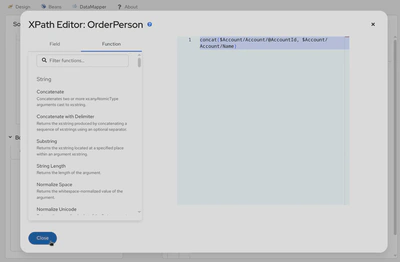

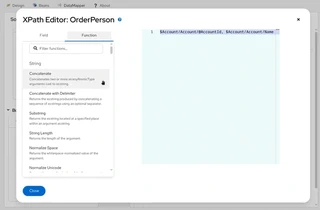

4. You can also drag and drop XPath functions from the Function tab on the left side.

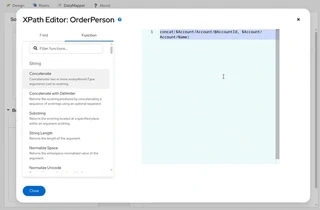

5. Drag the function and drop it onto the editor.



6. Once it’s completed, click the Close button at the bottom left.

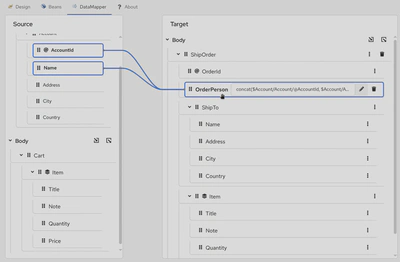

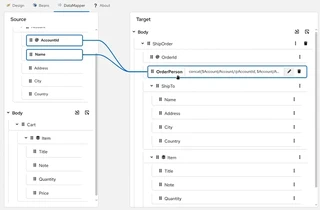

7. Now you can see the new mapping in the tree view.



Delete a mapping

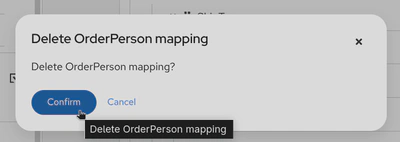

1. To delete a mapping you can click the dustbin button next to the target field.



2. You then have to confirm the deletion by clicking the Confirm button.



Delete a parameter

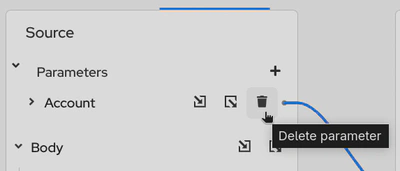

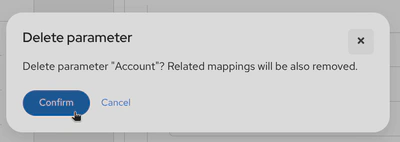

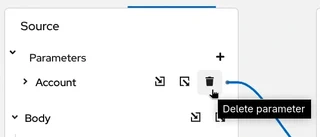

1. To delete a parameter, click the dustbin button next to the parameter.



2. You then have to confirm the deletion by clicking the Confirm button.



Detach a schema

Similar to attaching a schema you can also remove / detach a schema.

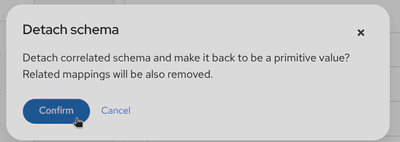

1. Click the Detach schema button.



2. Click the Confirm button.
